Product RB1856
- Description
- Brake pad set
- Axe
- Front
- No. of Pieces
- 4
- Barcode
-
8424073135506
- Url
- https://catalogonuevo.rbrake.com/Producto/Details?idProducto=RB1856
- Weight (gr.)
- 1941
- System
- Ate - Teves
- R90 Homologation
-
90R-01111/2467

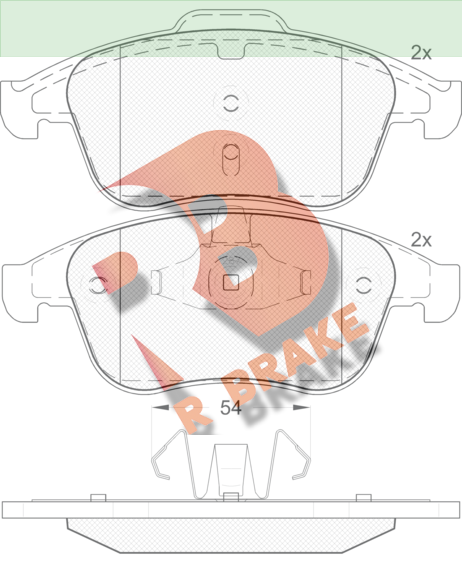

- Measures
- 155.1x63.08x18
- 156.5x68.28x18
| Brand | OE Reference |
|---|---|
| RENAULT | 41 06 000 11R |
| RENAULT | 41 06 003 11R |
| RENAULT | 41 06 023 09R |
| RENAULT | 41 06 050 55R-OE |
| RENAULT | 41 06 075 85R |
| RENAULT | 86 60 000 764 |
| RENAULT | 86 60 004 533 |
| Maker | Cross reference |
|---|---|
| ATE | 13.0460-7249.2 |
| ATE | 607249 |
| BENDIX ANTIGUO | 573243B |
| BENDIX-ROULUNDS | 510698 |
| BOSCH | 0 986 494 381 |
| BREMBO | P 68 046 |
| DELPHI LOCKHEED | LP2079 |
| FERODO | FDB4068 |
| FMSI | D1765-8984 |
| GIRLING | 6118082 |
| HELLA-PAGID | T1775 |
| MINTEX | MDB2965 |
| NECTO | FD7355A |
| ROAD HOUSE | 21350.00 |
| TEXTAR | 24709 180 0 5 |
| TEXTAR | 2470901 |
| TRW | GDB1808 |
| VALEO | 601066 |
| WVA | 24709 |
| WVA | 24710 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 RS (BHJ4, BHJ6, BHMM) |
M5M 400 M5M 401 M5M 450 |
1 | 03/2013-08/2021 | 1618 | 147 | 200 | 1 |
| 1.6 RS Trophy (BHJ4, BHJ6) |
M5M 401 |
1 | 03/2015-08/2021 | 1618 | 162 | 220 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 (L33T, L33J, L304, L305, L30H) |
H4M 729 |
1 | 01/2013- | 1598 | 86 | 117 | 1 |
| 1.6 16V (L301, L30F, L30P, L30R) |
K4M 838 K4M 839 |
1 | 02/2010- | 1598 | 81 | 110 | 1 |
| 1.6 16V (L301, L30P, L30R) |
K4M 838 |
1 | 02/2010- | 1598 | 82 | 111 | 1 |
| 2.0 |
M4R 714 M4R 751 |
1 | 05/2014- | 1997 | 105 | 143 | 1 |
| 2.0 | 1 | 01/2012- | 1998 | 132 | 180 | 1 | |
| 2.0 16V | 1 | 05/2011- | 1997 | 101 | 137 | 1 | |
| 2.0 16V (L30C, L30G, L30T, L30V) |
M4R 714 M4R 751 |
1 | 02/2010- | 1997 | 103 | 140 | 1 |
| 1.6 LPG 16V |
K4M 839 |
18 | 01/2012- | 1598 | 81 | 110 | 1 |
| 1.6 Flex (L300) | 19 | 01/2012-11/2014 | 1598 | 85 | 115 | 1 | |
| 2.0 Flex | 19 | 02/2010-11/2018 | 1997 | 105 | 143 | 1 | |
| 1.5 dCi |
K9K 826 |
2 | 07/2014- | 1461 | 70 | 95 | 1 |
| 1.5 dCi (L30A) |
K9K 830 |
2 | 02/2010- | 1461 | 63 | 86 | 1 |
| 1.5 dCi (L30B) |
K9K 832 |
2 | 02/2010- | 1461 | 78 | 106 | 1 |
| 1.5 dCi (L30D, L30L, L306, L33F, L33L, L33M, L33V, L33W) |
K9K 656 K9K 657 K9K 836 K9K 837 |
2 | 02/2010- | 1461 | 81 | 110 | 1 |
| 1.5 dCi (L30S) |
K9K 834 |
2 | 02/2010- | 1461 | 66 | 90 | 1 |
| 1.6 dCi |
R9M 402 |
2 | 07/2014- | 1598 | 96 | 130 | 1 |
| Z.E. |
5AM 400 |
11 | 02/2012- | 70 | 95 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.2 TCe (JZ11, JZ28) |
H5F 400 |
1 | 04/2012-09/2016 | 1197 | 85 | 116 | 1 |
| 1.2 TCe (JZ16) |
H5F 404 |
1 | 01/2013-09/2016 | 1197 | 97 | 132 | 1 |
| 1.2 TCe (JZ28) |
H5F 408 |
1 | 07/2014-09/2016 | 1197 | 96 | 131 | 1 |
| 1.4 16V (JZ0F) |
H4J 700 |
1 | 02/2009-09/2016 | 1397 | 96 | 131 | 1 |
| 1.6 16V (JZ0U) |
K4M 858 |
1 | 02/2009-09/2016 | 1598 | 81 | 109 | 1 |
| 2.0 16V (JZ0G) |
M4R 711 |
1 | 02/2009-09/2016 | 1997 | 103 | 140 | 1 |
| 1.6 16V Bifuel (JZ1Y) |
K4M 866 |
18 | 04/2012-09/2016 | 1598 | 79 | 107 | 1 |
| 1.6 16V Bifuel (JZ1Y) |
K4M 866 |
18 | 02/2009-09/2016 | 1598 | 81 | 110 | 1 |
| 1.6 E85 (JZ03, JZ1Y) |
K4M 866 |
19 | 02/2009-09/2016 | 1598 | 81 | 110 | 1 |
| 1.5 dCi (JZ02, JZ0R) |
K9K 846 |
2 | 11/2010-09/2016 | 1461 | 70 | 95 | 1 |
| 1.5 dCi (JZ09, JZ0D, JZ10, JZ14, JZ1G, JZ29, JZ2C) |
K9K 636 K9K 836 K9K 837 |
2 | 04/2009-09/2016 | 1461 | 81 | 110 | 1 |
| 1.5 dCi (JZ0A) |
K9K 830 |
2 | 04/2009-09/2016 | 1461 | 63 | 86 | 1 |
| 1.5 dCi (JZ0B, JZ07) |
K9K 832 |
2 | 02/2009-09/2016 | 1461 | 78 | 106 | 1 |
| 1.6 dCi (JZ00, JZ12) |
R9M 402 R9M 404 R9M 414 |
2 | 04/2011-09/2016 | 1598 | 96 | 130 | 1 |
| 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) |
F9Q 870 F9Q 872 |
2 | 02/2009-09/2016 | 1870 | 96 | 131 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 16V (BT04, BT0D, BT0U) |
K4M 824 |
1 | 10/2007-12/2015 | 1598 | 81 | 110 | 1 |
| 2.0 16V (BT05, BT0F, BT0W) |
M4R 704 |
1 | 10/2007-12/2012 | 1998 | 103 | 140 | 1 |
| 2.0 16V Turbo |
F4R 811 |
1 | 10/2007-12/2015 | 1998 | 125 | 170 | 1 |
| 2.0 16V Hi-Flex (BT1H, BT1G, BT1K) |
M4R 726 |
19 | 10/2007-12/2015 | 1997 | 103 | 140 | 1 |
| 1.5 dCi (BT00, BT0A, BT0T, BT1J) |
K9K 780 K9K 782 |
2 | 10/2007-12/2015 | 1461 | 81 | 110 | 1 |
| 2.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,... |
M9R 742 M9R 744 M9R 746 M9R 748 M9R 754 M9R 802 M9R 805 M9R 808 M9R 814 M9R 845 M9R 854 M9R 858 |
2 | 10/2007-12/2015 | 1995 | 110 | 150 | 1 |
| 2.0 dCi (BT07, BT0J, BT14, BT1A, BT1S) |
M9R 742 M9R 744 M9R 802 M9R 814 M9R 854 M9R 858 |
2 | 10/2007-12/2015 | 1995 | 96 | 131 | 1 |
| 2.0 dCi (BT0M, BT0N, BT0S, BT19, BT1F) |
M9R 800 M9R 806 M9R 809 M9R 815 M9R 854 M9R 857 M9R 858 |
2 | 01/2008-12/2015 | 1995 | 127 | 173 | 1 |
| 2.0 dCi GT (BT11, BT1E, BT1N) |
M9R 816 M9R 820 M9R 828 |
2 | 03/2008-12/2015 | 1995 | 131 | 178 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 16V (KT0D) |
K4M 824 |
1 | 10/2007-12/2015 | 1598 | 81 | 110 | 1 |
| 2.0 16V (KT0F, KT0W) |
M4R 704 |
1 | 10/2007-12/2015 | 1998 | 103 | 140 | 1 |
| 2.0 16V Turbo |
F4R 811 |
1 | 10/2007-12/2015 | 1998 | 125 | 170 | 1 |
| 2.0 16V Hi-Flex (KT1H, KT1G, KT1K) |
M4R 704 M4R 726 |
19 | 10/2007-12/2015 | 1997 | 103 | 140 | 1 |
| 1.5 dCi (KT0A, KT0R, KT02) |
K9K 780 K9K 782 K9K 846 |
2 | 10/2007-12/2015 | 1461 | 81 | 110 | 1 |
| 2.0 dCi (KT01, KT08, KT09, KT0K, KT12, KT1D, KT1W) |
M9R 742 M9R 744 M9R 802 M9R 805 M9R 808 M9R 814 M9R 845 M9R 854 M9R 858 |
2 | 10/2007-12/2015 | 1995 | 110 | 150 | 1 |
| 2.0 dCi (KT07, KT0J, KT14, KT1A, KT1S) |
M9R 742 M9R 744 M9R 802 M9R 814 M9R 854 M9R 858 |
2 | 10/2007-12/2015 | 1995 | 96 | 131 | 1 |
| 2.0 dCi (KT0M, KT0N, KT0S, KT19, KT1F) |
M9R 800 M9R 806 M9R 809 M9R 815 M9R 849 M9R 854 M9R 857 M9R 858 |
2 | 01/2008-12/2015 | 1995 | 127 | 173 | 1 |
| 2.0 dCi GT (KT11, KT1E, KT1N) |
M9R 816 M9R 820 M9R 828 |
2 | 03/2008-12/2015 | 1995 | 131 | 178 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 16V Turbo |
F4R 811 F4RT 811 |
1 | 09/2008-12/2015 | 1998 | 125 | 170 | 1 |
| 2.0 GT |
F4R 800 |
1 | 09/2008-12/2015 | 1998 | 150 | 204 | 1 |
| 3.5 V6 (DT0P) |
V4Y 713 |
1 | 09/2008-12/2015 | 3498 | 175 | 238 | 1 |
| 2.0 dCi (DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M,... |
M9R 744 M9R 748 M9R 754 M9R 802 M9R 805 M9R 808 M9R 814 M9R 845 M9R 854 M9R 858 |
2 | 09/2008-12/2015 | 1995 | 110 | 150 | 1 |
| 2.0 dCi (DT0M, DT0N, DT0S, DT19, DT1F) |
M9R 800 M9R 806 M9R 809 M9R 815 M9R 849 M9R 854 M9R 857 |
2 | 09/2008-12/2015 | 1995 | 127 | 173 | 1 |
| 2.0 dCi GT (DT11, DT1E, DT1N) |
M9R 816 M9R 820 M9R 828 |
2 | 09/2008-12/2015 | 1995 | 131 | 178 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 16V |
M4R 746 |
1 | 02/2011- | 1997 | 102 | 139 | 1 |
| 2.0 16V (L70B) |
M4R 746 |
1 | 02/2011- | 1997 | 103 | 140 | 1 |
| 2.5 V6 (L702, L703, L704, L707) |
2ZV 604 |
1 | 05/2011- | 2495 | 130 | 177 | 1 |
| 2.0 16V eco2 Flexfuel (L70B) |
M4R 746 |
19 | 02/2011- | 1997 | 103 | 140 | 1 |
| 1.5 dCi (L70R, L731) |
K9K 782 K9K 849 |
2 | 07/2010- | 1461 | 81 | 110 | 1 |
| 2.0 dCi | 2 | 02/2011- | 1995 | 130 | 177 | 1 | |
| 2.0 dCi 130 |
M9R 756 |
2 | 12/2013- | 1995 | 96 | 131 | 1 |
| 2.0 dCi 150 (L70H) |
M9R 824 M9R 846 |
2 | 02/2011- | 1995 | 110 | 150 | 1 |
| 2.0 dCi 175 (L70Y, L734) |
M9R 804 M9R 817 M9R 844 |
2 | 05/2011- | 1995 | 127 | 173 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 TCe |
F4R 872 |
1 | 06/2012-08/2015 | 1998 | 140 | 190 | 1 |
| 2.0 TCe (BZ0K) |
F4R 870 |
1 | 11/2008-08/2015 | 1998 | 132 | 180 | 1 |
| 2.0 TCe 220 |
F4R 874 |
1 | 11/2013-01/2016 | 1998 | 162 | 220 | 1 |
| 2.0 dCi |
M9R 610 |
2 | 07/2012-08/2015 | 1995 | 120 | 163 | 1 |
| 2.0 dCi (BZ0L) |
M9R 610 |
2 | 04/2009-08/2015 | 1995 | 118 | 160 | 1 |
| 2.0 dCi (BZ0Y) |
M9R 615 |
2 | 10/2010-08/2015 | 1995 | 110 | 150 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 TCe |
F4R 872 |
1 | 06/2012-08/2015 | 1998 | 140 | 190 | 1 |
| 2.0 TCe (DZ0K) |
F4R 870 |
1 | 11/2008-08/2015 | 1998 | 132 | 180 | 1 |
| 2.0 TCe 220 |
F4R 874 |
1 | 11/2013-08/2015 | 1998 | 162 | 220 | 1 |
| 2.0 dCi |
M9R 610 |
2 | 07/2012-08/2015 | 1995 | 120 | 163 | 1 |
| 2.0 dCi (DZ0L) |
M9R 610 |
2 | 04/2009-08/2015 | 1995 | 118 | 160 | 1 |
| 2.0 dCi (DZ0Y) |
M9R 615 |
2 | 04/2009-08/2015 | 1995 | 110 | 150 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 TCe |
F4R 872 |
1 | 09/2012-08/2015 | 1998 | 140 | 190 | 1 |
| 2.0 TCe |
F4R 874 |
1 | 09/2012-01/2016 | 1998 | 162 | 220 | 1 |
| 2.0 TCe (KZ0K, KZ1T) |
F4R 870 F4R 872 |
1 | 11/2008-08/2015 | 1998 | 132 | 180 | 1 |
| 2.0 dCi |
M9R 610 |
2 | 07/2012-08/2015 | 1995 | 120 | 163 | 1 |
| 2.0 dCi (KZ0L) |
M9R 610 |
2 | 04/2009-08/2015 | 1995 | 118 | 160 | 1 |
| 2.0 dCi (KZ0Y) |
M9R 615 |
2 | 10/2010-08/2015 | 1995 | 110 | 150 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 TCe (EZ1T) |
F4R 870 F4R 872 |
1 | 06/2010-08/2015 | 1998 | 132 | 180 | 1 |
| 2.0 dCi (EZ0L) |
M9R 610 |
2 | 06/2010-08/2015 | 1995 | 118 | 160 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.2 TCe |
H5F 400 |
1 | 04/2012-09/2016 | 1197 | 85 | 116 | 1 |
| 1.2 TCe |
H5F 408 |
1 | 07/2014-09/2016 | 1197 | 96 | 131 | 1 |
| 1.2 TCe (JZ16) |
H5F 404 H5F 408 |
1 | 01/2013-09/2016 | 1197 | 97 | 132 | 1 |
| 1.4 16V (JZ0F, JZ1V) |
H4J 700 |
1 | 02/2009-09/2016 | 1397 | 96 | 131 | 1 |
| 1.6 16V (JZ0U, JZ1B) |
K4M 858 K4M R 858 |
1 | 02/2009-09/2016 | 1598 | 81 | 110 | 1 |
| 2.0 16V |
M4R 711 |
1 | 12/2008-09/2016 | 1997 | 101 | 137 | 1 |
| 2.0 16V (JZ0G, JZ0P, JZ1E, JZ1P) |
M4R 710 M4R 711 M4R 713 |
1 | 02/2009-09/2016 | 1997 | 103 | 140 | 1 |
| 1.6 16V Bifuel |
K4M 866 |
18 | 04/2012-12/2013 | 1598 | 79 | 107 | 1 |
| 1.6 16V Bifuel |
K4M 866 |
18 | 02/2009-09/2016 | 1598 | 81 | 110 | 1 |
| 1.6 E85 (JZ03, JZ1Y) |
K4M 866 |
19 | 02/2009-09/2016 | 1598 | 81 | 110 | 1 |
| 1.5 dCi |
K9K 830 |
2 | 04/2009-09/2016 | 1461 | 63 | 86 | 1 |
| 1.5 dCi |
K9K 832 |
2 | 02/2009-09/2016 | 1461 | 78 | 106 | 1 |
| 1.5 dCi |
K9K 636 K9K 656 K9K 657 K9K 836 K9K 837 |
2 | 04/2009-09/2016 | 1461 | 81 | 110 | 1 |
| 1.5 dCi (JZ02, JZ0R) |
K9K 846 |
2 | 11/2010-09/2016 | 1461 | 70 | 95 | 1 |
| 1.6 dCi (JZ00, JZ12) |
R9M 402 R9M 404 R9M 414 |
2 | 04/2011-09/2016 | 1598 | 96 | 130 | 1 |
| 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) |
F9Q 870 F9Q 872 |
2 | 02/2009-09/2016 | 1870 | 96 | 131 | 1 |
| 2.0 dCi (JZ0L) |
M9R 610 |
2 | 04/2009-09/2016 | 1995 | 118 | 160 | 1 |
| 2.0 dCi (JZ0Y, JZ26) |
M9R 615 |
2 | 02/2009-09/2016 | 1995 | 110 | 150 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.4 TCe (JZ0F, JZ1V) | 1 | 01/2013-09/2016 | 1397 | 96 | 131 | 1 | |
| 1.6 VVT (JZ0U, JZ1B, JZ1H, JZ1U, JZ24) | 1 | 01/2013-09/2016 | 1598 | 81 | 110 | 1 | |
| 1.5 dCi (JZ02) | 2 | 01/2013-09/2016 | 1461 | 70 | 95 | 1 | |
| 1.5 dCi (JZ0D, JZ1M, JZ09, JZ14, JZ1G, JZ1W, JZ10) | 2 | 04/2009-09/2016 | 1461 | 81 | 110 | 1 | |
| 1.6 dCi (JZ00, JZ12, JZ2A) | 2 | 01/2013-09/2016 | 1598 | 96 | 131 | 1 | |
| 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) | 2 | 01/2013-09/2016 | 1870 | 96 | 131 | 1 |
