Product RB1665

Description

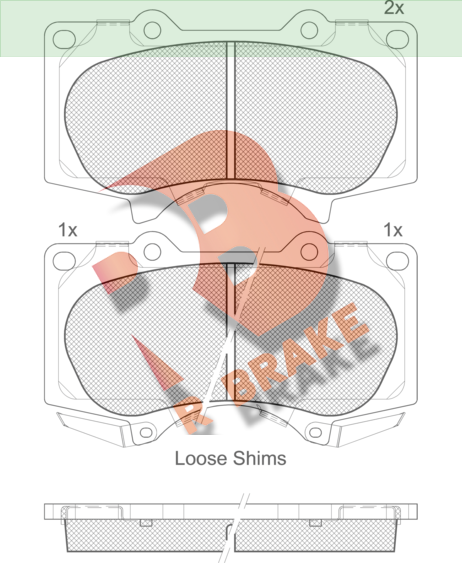

Brake pad set
Axe
Front
No. of Pieces
4
Barcode
EAN13 Code
8424073133175
QR Code
Url
https://catalogonuevo.rbrake.com/Producto/Details?idProducto=RB1665
Weight (gr.)
2100
System
Sumitomo
R90 Homologation
R90 90R-01111/1214
Measures
134.4x77.1x17.2
Reference applications
Brand OE Reference
LEXUS 04465-04090
LEXUS 04465-35250
LEXUS 04465-35290
MITSUBISHI 46 05A 472
MITSUBISHI 46 05A 481
MITSUBISHI 46 05B 993
MITSUBISHI 46 05B 994
MITSUBISHI MZ 690 583
TOYOTA 04465-04070
TOYOTA 04465-0K030
TOYOTA 04465-0K090
TOYOTA 04465-0K280
TOYOTA 04465-0K360
TOYOTA 04465-0K370
TOYOTA 04465-0K390
TOYOTA 04465-0K400
TOYOTA 04465-0K401
TOYOTA 04465-0K580
TOYOTA 04465-35330
TOYOTA 04465-60210
TOYOTA 04465-60270
TOYOTA 04465-60320
TOYOTA 04465-AZ100
TOYOTA 04465-YZZDB
TOYOTA V9118-A092
Maker Cross reference
ATE 13.0460-5747.2
ATE 605747
B.M. DB1482
BENDIX ANTIGUO 572515B
BENDIX-ROULUNDS 510731
BOSCH 0 986 494 153
BREMBO P 83 066
BREMBO P 83 066X
BREMBO P 83 102
BREMBO P 83 102X
DELPHI LOCKHEED LP1782
FERODO FDB1698
FMSI D976-7877
FMSI D976-9216
GIRLING 6133649
HELLA-PAGID 8DB 355 010-491
HELLA-PAGID T1368
HELLA-PAGID T1795
MINTEX MDB2553
MINTEX MDB2984
NECTO FD7123A
ROAD HOUSE 2988.00
TEXTAR 24024 170 0 5
TEXTAR 24024 178 0 5 T4051
TEXTAR 2402401
TEXTAR 2402403
TRW GDB3364
VALEO 598857
WVA 24024
WVA 24025
WVA 24026
WVA 24470
WVA 24471
CHANGAN
CX30 () Hatchback 01/2009-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
1.6 1 05/2010- 1590 78 106 1
2.0 1 05/2010- 1998 112 152 1
CX30 () Saloon 12/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 1 12/2010- 1590 78 106 1
2.0 1 12/2010- 1998 112 152 1
LEXUS
GX (_J12_) SUV 11/2001-11/2009
Vehicle Engine Fuel Date CC KW CV Traction
470 (UZJ120)

2UZ-FE

 1 11/2001-11/2009 4664 175 238 3
470 (UZJ120)

2UZ-FE

 1 11/2001-11/2009 4664 199 271 3
GX II (URJ15_, GRJ15_) SUV 11/2009-
Vehicle Engine Fuel Date CC KW CV Traction
460 4WD (URJ150)

1UR-FE

 1 01/2010- 4608 218 296 3
460 4WD (URJ150)

1UR-FE

 1 01/2010- 4608 225 306 3
MITSUBISHI
PAJERO III / MONTERO / SHOGUN (V6_W, V7_W) Open Off-Road Vehicle 02/2000-12/2006
Vehicle Engine Fuel Date CC KW CV Traction
3.2 D 2 04/2000-12/2006 3200 121 165 2
PAJERO IV FULL / MONTERO / SHOGUN (V8_W, V9_W) SUV 10/2006-
Vehicle Engine Fuel Date CC KW CV Traction
3.2 DI-D 1 01/2009- 3200 153 208 1
3.5 4WD 1 11/2013- 3497 147 200 1
3.5 Flex 4WD 1 08/2009- 3497 151 205 1
3.8 i 4WD (V97W, V87W)

6G75

 1 01/2009- 3828 175 238 3
3.8 V6 (V87W, V97W)

6G75

 1 02/2007- 3828 184 250 3
3.8 V6 (V87W)

6G75

 1 10/2006- 3828 182 248 3
3.2 4WD (V98W)

4M41

 2 10/2016- 3200 141 192 3
3.2 DI-D (V88W, V98W)

4M41

 2 02/2007- 3200 118 160 3
3.2 DI-D (V88W, V98W)

4M41

 2 02/2007- 3200 125 170 3
3.2 DI-D 4WD

4M41

 2 11/2008- 3200 121 165 3
3.2 DI-D 4WD (V98W, V88W)

4M41

 2 02/2007- 3200 140 190 3
3.2 DI-D 4WD (V98W, V88W)

4M41

 2 01/2009- 3200 147 200 3
PAJERO IV / MONTERO / SHOGUN (V9_, V8_, V8_V) Closed Off-Road Van 11/2006-
Vehicle Engine Fuel Date CC KW CV Traction
3.2 DI-D

4M41

 2 11/2006- 3200 118 160 3
3.2 DI-D 4WD (V88W, V98W)

4M41

 2 02/2007- 3200 140 190 3
3.2 TD 4WD (V88V, V98V)

4M41

 2 01/2010- 3200 147 200 3
PAJERO SPORT II / PAJERO DAKAR / CHALLENGER / MONTERO SPORT / NATIVA (KH_, KG_) Closed Off-Road Vehicle 01/2008-
Vehicle Engine Fuel Date CC KW CV Traction
3.2 DI-D 4WD 2 11/2013-12/2018 3200 132 180 3
TOYOTA
4RUNNER IV (_N21_) SUV 08/2002-12/2009
Vehicle Engine Fuel Date CC KW CV Traction
4.0 (GRN210)

1GR-FE

 1 09/2005-09/2009 3956 174 237 2
4.0 (GRN210)

1GR-FE

 1 11/2002-07/2009 3956 183 249 2
4.0 (GRN215)

1GR-FE

 1 09/2005-09/2009 3956 174 237 3
4.0 4WD (GRN215)

1GR-FE

 1 01/2003-12/2009 3956 183 249 3
4.7 (UZN210_)

2UZ-FE

 1 08/2002-09/2006 4663 175 238 2
4.7 (UZN210)

2UZ-FE

 1 01/2005-12/2009 4663 194 264 2
4.7 4WD (UZN215_)

2UZ-FE

 1 08/2002-09/2006 4663 175 238 3
4.7 4WD (UZN215)

2UZ-FE

 1 01/2005-12/2009 4663 194 264 3
4 RUNNER V / SW4 (_N28_) SUV 03/2009-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 1 03/2009- 2694 116 158 1
4.0 (GRN280_)

1GR-FE

 1 01/2010- 3956 202 275 2
FJ CRUISER (GSJ1_) SUV 06/2005-
Vehicle Engine Fuel Date CC KW CV Traction
4.0 (GSJ15)

1GR-FE

 1 06/2005-10/2009 3956 176 239 2
4.0 (GSJ15)

1GR-FE

 1 01/2006-12/2011 3956 178 242 2
4.0 (GSJ15)

1GR-FE

 1 01/2010-06/2014 3956 191 260 2
4.0 4WD (GSJ15_, GSJ15R)

1GR-FE

 1 12/2010- 3956 200 272 3
4.0 4WD (GSJ15_, GSJ15W)

1GR-FE

 1 06/2005-01/2018 3956 203 276 3
4.0 4WD (GSJ15_)

1GR-FE

 1 01/2006-01/2018 3956 178 242 3
4.0 4WD (GSJ15_)

1GR-FE

 1 01/2010-06/2014 3956 191 260 3
4.0 4WD (GSJ15)

1GR-FE

 1 06/2005-12/2009 3956 176 239 3
FORTUNER / SW4 (_N5_, _N6_) SUV 06/2004-09/2015
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (TGN61_, TGN61R)

2TR-FE

 1 06/2004-05/2015 2694 118 160 2
2.7 4WD (TGN51_, TGN51R)

2TR-FE

 1 06/2004-05/2015 2694 118 160 3
4.0 (GGN50_, GGN60_)

1GR-FE

 1 07/2005-05/2015 3956 175 238 2
4.0 4WD (GGN60)

1GR-FE

 1 01/2005-05/2015 3956 175 238 3
2.5 D-4D (KUN60, RZN205)

2KD-FTV

 2 06/2004-05/2015 2494 75 102 2
2.5 D-4D (KUN60)

2KD-FTV

 2 01/2009-05/2015 2494 106 144 2
2.5 D-4D 4WD (KUN50)

2KD-FTV

 2 01/2009-05/2015 2494 75 102 3
2.5 D-4D 4WD (RZN215, KUN50)

2KD-FTV

 2 07/2011-05/2015 2494 106 144 3
3.0 D 4WD (KUN51_)

1KD-FTV

 2 08/2009-05/2015 2982 126 171 3
3.0 D 4WD (KUN51)

1KD-FTV

 2 06/2004-05/2015 2982 120 163 3
3.0 D 4WD (KUN51)

1KD-FTV

 2 08/2009-05/2015 2982 125 170 3
FORTUNER II / SW4 (_N15_, _N16_) SUV 05/2015-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (TGN166_, TGN168_)

2TR-FE

 1 01/2016- 2694 120 163 2
2.7 (TGN166_, TGN168_)

2TR-FE

 1 05/2015- 2694 122 166 2
2.7 4x4 (TGN156_)

2TR-FE

 1 05/2015- 2694 122 166 3
4.0 4x4 (GGN155_)

1GR-FE

 1 11/2015-12/2017 3956 175 238 3
2.4 D (GUN165_)

2GD-FTV

 2 05/2015- 2393 110 150 2
2.4 D 4x4 (GUN155_)

2GD-FTV

 2 05/2015- 2393 110 150 3
2.8 D (GUN166_) 2 05/2015- 2755 130 177 2
2.8 D 4x4 (GUN156)

1GD-FTV

 2 05/2015- 2755 130 177 3
3.0 TDI 2 10/2015- 2982 130 177 2
HiLux VII / HiLux (VIGO) (_N1_, _N2_, _N3_) Pickup 08/2004-
Vehicle Engine Fuel Date CC KW CV Traction
2.5 D 4WD (KUN25)

2KD-FTV

 2 03/2005-05/2015 2494 75 102 3
2.5 D-4D (KUN15, KUN35)

2KD-FTV

 2 01/2010-05/2015 2494 106 144 2
2.5 D-4D 4WD (KUN25_, KUN25R)

2KD-FTV

 2 06/2006-05/2015 2494 88 120 3
2.5 D-4D 4WD (KUN25_)

2KD-FTV

 2 11/2004-12/2005 2494 94 128 3
2.5 D-4D 4WD (KUN25)

2KD-FTV

 2 12/2007-05/2015 2494 106 144 3
3.0 D-4D 4WD (KUN26)

1KD-FTV

 2 03/2005-05/2015 2982 120 163 3
3.0 D-4D 4WD (KUN26)

1KD-FTV

 2 05/2008-12/2012 2982 145 197 3
HiLux VII (_N1_, _N2_) Platform/Chassis 02/2005-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 D 4WD (KUN26)

1KD-FTV

 2 02/2005- 2982 126 171 3
HiLux VIII (_N1_) Pickup 05/2015-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (TGN110_, TGN120_)

1TR-FE

 1 08/2015- 1998 102 139 2
2.7 4WD (TGN126_)

2TR-FE

 1 05/2015- 2694 118 160 3
2.7 4WD (TGN126_)

2TR-FE

 1 05/2015- 2694 121 165 3
2.7 VVTi (TGN111_, TGN121_, TGN136_, TGN111R, TGN121R,...

2TR-FE

 1 05/2015- 2694 122 166 2
4.0 V6 VVTi (GGN120_, GGN135_, GGN120R, GGN135R)

1GR-FE

 1 07/2015- 3956 175 238 2
4.0 V6 VVTi 4WD (GGN125, GGN135)

1GR-FE

 1 07/2015- 3956 175 238 3
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,...

2GD-FTV

 2 05/2015- 2393 110 150 2
2.4 D (GUN135)

2GD-FTV

 2 10/2018- 2393 125 170 2
2.4 D 4WD (GUN125_, GUN125R)

2GD-FTV

 2 05/2015- 2393 110 150 3
2.4 D 4WD (GUN125)

2GD-FTV

 2 10/2018- 2393 125 170 3
2.5 D (KUN112_, KUN122_, KUN135_) 2 08/2015- 2494 75 102 2
2.5 D 4WD (KUN125_) 2 05/2015-08/2017 2494 106 144 3
2.8 D-4D (GUN123_, GUN136_, GUN136) 2 07/2015- 2755 125 170 2
2.8 D-4D (GUN123_, GUN136_, GUN136)

1GD-FTV

 2 05/2015- 2755 130 177 2
2.8 D-4D 4WD (GUN126_, GUN126R)

1GD-FTV

 2 05/2015- 2755 130 177 3
2.8 TD 4WD (GUN126)

1GD-FTV

 2 06/2020- 2755 150 204 3
HiLux VIII (_N1_) Platform/Chassis 05/2015-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 VVTi (TGN111_, TGN121_, TGN136_, TGN111R, TGN121R,... 1 05/2015- 2694 122 166 2
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... 2 07/2015- 2393 110 150 2
2.4 D 4WD (GUN125_, GUN125R)

2GD-FTV

 2 07/2015- 2393 110 150 3
2.8 D-4D (GUN123_, GUN136_, GUN136) 2 07/2015- 2755 125 170 2
2.8 D-4D 4WD (GUN126_, GUN126R) 2 07/2015- 2755 130 177 3
LAND CRUISER PRADO (_J12_) Closed Off-Road Vehicle 09/2002-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (TRJ120, TRJ125)

2TR-FE

 1 11/2003-02/2010 2694 120 163 3
3.4 (VZJ121, VZJ125, VZJ120) 1 09/2002-07/2005 3378 136 185 3
4.0 (GRJ120, GRJ125, GRJ121)

1GR-FE

 1 12/2002-12/2010 3956 183 249 3
4.0 (GRJ120)

1GR-FE

 1 09/2002-08/2010 3956 179 243 3
4.0 V6 VVT-i (GRJ125)

1GR-FE

 1 01/2003-07/2009 3956 207 282 3
3.0 D (KZJ120, KDJ125, KDJ121)

1KZ-TE

 2 09/2002-07/2009 2982 92 125 3
3.0 D (LJ120, LJ125)

5L-E

 2 09/2002-02/2010 2986 70 95 3
3.0 D-4D (KDJ120_)

1KD-FTV

 2 08/2006-07/2009 2982 150 204 3
3.0 D-4D (KDJ120, KDJ125, KDJ121)

1KD-FTV

 2 09/2002-08/2009 2982 120 163 3
3.0 D-4D (KDJ120, KDJ125, KDJ121)

1KD-FTV

 2 07/2004-08/2009 2982 122 166 3
3.0 D-4D (KDJ120, KDJ125, KDJ121)

1KD-FTV

 2 09/2002-12/2010 2982 127 173 3
4.5 D 2 02/2005-02/2010 4461 151 205 2
LAND CRUISER PRADO (_J15_) Closed Off-Road Vehicle 07/2009-
Vehicle Engine Fuel Date CC KW CV Traction
3.5 (GRJ152_)

7GR-FKS

 1 09/2015- 3456 206 280 3
4.0 V6 Dual VVTi (GRJ150_)

1GR-FE

 1 08/2009- 3956 205 279 3
4.0 V6 VVT-i (GRJ150_, GRJ125_, GRJ150)

1GR-FE

 1 08/2009- 3956 207 282 3
4.0 V6 VVTi (GRJ150_, GRJ150R, GRJ150W)

1GR-FE

 1 11/2012- 3956 183 249 3
4.0 V6 VVTi (GRJ150)

1GR-FE

 1 08/2009- 3956 202 275 3
2.8 D-4D (GDJ150_, GDJ155_, GDJ150, GDJ151)

1GD-FTV

 2 06/2015- 2755 130 177 3
2.8 D-4D (GDJ150, GDJ155)

1GD-FTV

 2 10/2018- 2755 147 200 3
2.8 D-4D (GDJ155, GDJ150)

1GD-FTV

 2 07/2020- 2755 150 204 3
3.0 D-4D (KDJ150_, KDJ150, KDJ155)

1KD-FTV

 2 08/2009- 2982 127 173 3
3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R)

1KD-FTV

 2 08/2009- 2982 140 190 3
3.0 TDi (KDJ150_)

1KD-FTV

 2 08/2009- 2982 120 163 3
LAND CRUISER PRADO VAN (_J15_) Closed Off-Road Van 01/2011-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 D4d 4WD (KDJ155, KDJ150)

1KD-FTV

 2 01/2011- 2982 140 190 3
SEQUOIA (_K3_, _K4_) SUV 05/2000-10/2007
Vehicle Engine Fuel Date CC KW CV Traction
4.7 (UCK35_, UCK35L)

2UZ-FE

 1 09/2000-10/2007 4664 175 238 2
4.7 (UCK35)

2UZ-FE

 1 05/2004-10/2007 4664 201 273 2
4.7 32V 1 05/2000- 4695 201 273 1
4.7 32V 1 05/2000- 4695 201 273 1
4.7 32V 4WD 1 05/2000- 4695 201 273 1
4.7 32V 4WD 1 05/2000- 4695 201 273 1
4.7 4WD (UCK35)

2UZ-FE

 1 05/2004-10/2007 4664 201 273 3
4.7 4WD (UCK45_, UCK45L)

2UZ-FE

 1 09/2000-10/2007 4664 175 238 3
TACOMA (_N1_) Pickup 09/1994-08/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.7 16V 1 09/1994- 2695 1
4.0 24V 1 09/1994- 3995 1
4.0 24V 4WD 1 09/1994- 3995 1
TACOMA () Pickup 01/1995-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 16V 1 01/1995- 2695 1
4.0 24V 1 01/1995- 3995 1
4.0 24V 4WD 1 01/1995- 3995 1
TACOMA (U.S.A.) Pickup 09/1995-12/2006
Vehicle Engine Fuel Date CC KW CV Traction
4.0 24V 1 09/1995- 3995 1
4.0 24V 4WD 1 09/1995- 3995 1
TACOMA II (_N2_) Pickup 09/2004-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (TRN225_)

2TR-FE

 1 09/2004-12/2015 2694 118 160 2
2.7 4WD (TRN220_)

2TR-FE

 1 09/2004-12/2015 2694 118 160 3
4.0 (GRN225_, GRN265_, GRN270_)

1GR-FE

 1 09/2004-12/2015 3956 174 237 2
4.0 4WD (GRN245_, GRN250_, GRN270_, GLN245L, GLN250L,...

1GR-FE

 1 09/2004-12/2015 3956 174 237 3
4.0 4WD (GRN245)

1GR-FE

 1 09/2004-07/2015 3956 175 238 3
TUNDRA (_K3_, _K4_) Pickup 02/1999-11/2006
Vehicle Engine Fuel Date CC KW CV Traction
3.4 (VCK30_, VCK40_, VCK30L, VCK40L)

5VZ-FE

 1 04/1999-07/2004 3378 140 190 2
3.4 4WD (VCK30_, VCK40_, VCK30L, VCK40L)

5VZ-FE

 1 04/1999-07/2004 3378 140 190 3
4.0 (GSK30_, GSK30L)

1GR-FE

 1 05/2003-11/2006 3956 180 245 2
4.0 4WD (GSK30_)

1GR-FE

 1 05/2003-11/2006 3956 180 245 3
4.7 (UCK30_, UCK40_)

2UZ-FE

 1 09/1999-12/2004 4664 183 249 2
4.7 (UCK30_, UCK40_)

2UZ-FE

 1 02/1999-11/2006 4664 206 280 2
4.7 (UCK30)

2UZ-FE

 1 02/1999-10/2006 4664 207 282 2
4.7 4WD (UCK31_, UCK41_)

2UZ-FE

 1 02/1999-10/2006 4664 183 249 3
4.7 4WD (UCK40_, UCK41_)

2UZ-FE

 1 02/1999-11/2006 4664 206 280 3
4.7 4WD (UCK40)

2UZ-FE

 1 02/1999-10/2006 4664 207 282 3
TOYOTA (FAW)
PRADO (_J12_) Closed Off-Road Vehicle 01/2003-06/2010
Vehicle Engine Fuel Date CC KW CV Traction
4.0 A las 4 ruedas (GRJ120, GRJ121, GRJ125)

1GR-FE

 1 10/2003-06/2010 3956 179 243 3
Return
