Product RB1536-400 - Web Catalogo

Description: Brake pad set
Axe: Front
No. of Pieces: 4
Barcode: 8424073205544
Url: https://catalogonuevo.rbrake.com/Producto/Details?idProducto=RB1536-400
Weight (gr.): 2125

System: Ate - Teves
R90 Homologation: 90R-01111/769

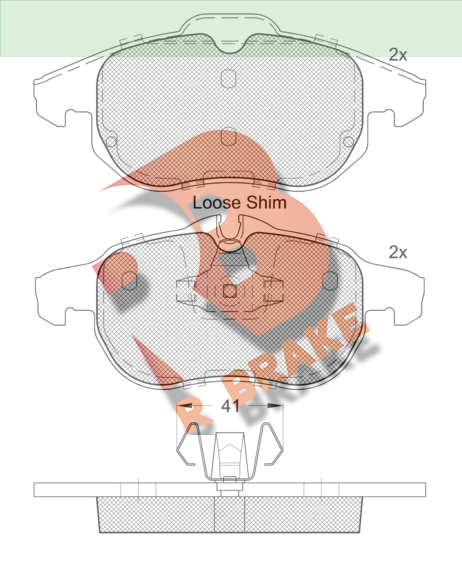

Measures: 155.1x69.8x19.8; 156.3x70.7x19.8

Reference applications

Brand	OE Reference
CADILLAC	9318 8111
FIAT	7 736 360 4
FIAT	7 736 422 4
OPEL	16 05 088
OPEL	16 05 094
OPEL	16 05 095
OPEL	16 05 098
OPEL	16 05 113
OPEL	16 05 136
OPEL	16 05 139
OPEL	16 05 282
OPEL	16 05 283
OPEL	16 05 972
OPEL	16 05 975
OPEL	93 166 798
OPEL	93 175 378
OPEL	93 183 728
OPEL	93 183 729
OPEL	93 186 003
RENAULT	86 60 004 791
RENAULT	86 71 019 121
SAAB	12 765 397
SAAB	12 800 120
SAAB	12 803 551
SAAB	32 01 959 3
SAAB	93 166 943
VAUXHALL	93 172 174
VAUXHALL	93 172 950
VAUXHALL	93 176 121
VAUXHALL	93 185 751
VAUXHALL	93 185 752
VAUXHALL	93 188 111

Maker	Cross reference
ATE	13.0460-7172.2
ATE	13.0460-7212.2
ATE	607172
ATE	607212
B.M.	DB1664
BENDIX ANTIGUO	573089B
BENDIX-ROULUNDS	510393
BENDIXX ANTIGUO	573089X
BOSCH	0 986 424 647
BOSCH	0 986 424 677
BOSCH	0 986 494 044
BREMBO	P 59 043
BREMBO	P 59 043X
DELPHI LOCKHEED	LP1723
FERODO	FDB1520
FERODO	FDB4188
FMSI	D1106-7873
FMSI	D972-7873
GIRLING	6114922
GIRLING	6116132
GIRLING	6116572
HELLA-PAGID	8DB 355 009-311
HELLA-PAGID	T1234
MINTEX	MDB2262
NECTO	FD6947A
NECTO	FD7399A
ROAD HOUSE	2888.00
TEXTAR	23402 206 0 5 T4139
TEXTAR	23402 206 0 5
TEXTAR	2340203
TEXTAR	23738 206 0 5 T4139
TEXTAR	2373807
TRW	GDB1492
TRW	GDB1613
TRW	GDB1657
VALEO	598678
WVA	23402
WVA	23403
WVA	23738
WVA	23739
WVA	23805

CADILLAC

BLS () Saloon 04/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 T	B207L LK9(122CUL4) Z 20 NET	1	04/2006-12/2010	1998	129	175	1
2.0 T	B207R LK9(122CUL4)	1	04/2006-	1998	154	210	1
2.0 T AWD	B207R LK9(122CUL4)	1	04/2006-12/2010	1998	154	210	3
2.8 T	B284L	1	04/2006-	2792	188	255	1
2.0 T Flexpower	Z 20 LER	19	12/2007-	1998	147	200	1
1.9 D	Z19DTH	2	04/2006-	1910	110	150	1
1.9 D	Z 19 DTR	2	12/2007-	1910	132	180	1
1.9 TD 8V		2	04/2006-	1895	88	120	2

BLS Wagon () Estate 12/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 T	Z 20 NET	1	12/2007-12/2010	1998	129	175	1
2.0 T	Z 20 NER	1	12/2007-	1998	154	210	1
2.0 T AWD	B207R	1	12/2007-12/2010	1998	154	210	3
2.8 T	Z 28 NET	1	12/2007-	2792	188	255	1
2.0 T Flexpower	Z 20 LER	19	12/2007-	1998	147	200	1
1.9 D	Z19DTH	2	12/2007-	1910	110	150	1
1.9 D	Z 19 DTR	2	12/2007-	1910	132	180	1

CHEVROLET

MATIZ II / SPARK (M200, M250) Hatchback 03/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8	LBF(49CUL3) LQ2(49CUL3)	1	03/2005-12/2013	796	38	52	1
1.0	B10S	1	01/2008-12/2013	995	46	62	1
1.0	LQ4(61CUL4)	1	03/2005-12/2007	995	47	64	1
1.0	B10S1 LA2	1	01/2007-	995	48	65	1
1.0	LQ4(61CUL4)	1	03/2005-	995	49	67	1
1.0 LPG		1	01/2007-	995	44	60	1
0.8 LPG	LBF(49CUL3) LQ2(49CUL3)	18	03/2005-12/2007	796	38	52	1
1.0 LPG	LA2 LQ4(61CUL4)	18	03/2005-03/2011	995	49	67	1

SPARK II (M200,M250) Hatchback 05/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 LPG		1	05/2005-	995	46	63	1
1.0 SX	LA2	1	06/2009-	995	44	60	1

SPARK III / BEAT / MATIZ (M300) Hatchback 12/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	07/2010-	995	48	65	1

VECTRA () Saloon 03/1996-11/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.2	LA3	1	09/2001-07/2004	3175	155	211	1

CHEVROLET (SGMW)

SPARK (KSC) Hatchback 11/2002-12/2012

Vehicle	Fuel	Date	CC	KW	CV	Traction
0.8	1	11/2002-	796	38	52	1
1.0	1	05/2005-	995	46	63	1
1.0	1	04/2010-	995	51	69	1

DAEWOO

MATIZ III (M300) Hatchback 01/2010-11/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	01/2010-11/2012	995	51	69	1

FIAT

CROMA II (194_) Estate 06/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 16V (194AXG1A)	939 A4.000	1	12/2005-12/2011	1796	103	140	1
2.2 16V	194 A1.000	1	06/2005-12/2010	2198	108	147	1
1.9 D Multijet	939 A7.000	2	06/2005-12/2011	1910	85	115	1
1.9 D Multijet	939 A8.000	2	12/2005-10/2007	1910	100	136	1
1.9 D Multijet (194AXB1B)	939 A1.000	2	06/2005-12/2011	1910	88	120	1

CROMA II (194_) Estate Van 04/2006-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 MJTD (194AXB1B)	939 A1.000	2	04/2006-12/2011	1910	88	120	1

FSO

MATIZ () Hatchback 06/2000-04/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8	F8CV	1	06/2000-04/2005	796	38	52	1
1.0	B10S	1	06/2000-04/2005	995	47	64	1

HOLDEN

VECTRA (ZC) Hatchback 04/2002-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 i		1	04/2002-12/2006	2198	108	147	1

VECTRA (ZC) Saloon 04/2002-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 i		1	04/2002-12/2006	2198	108	147	1

OPEL

ASTRA H (A04) Hatchback 01/2004-05/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 Turbo (L48)	Z 20 LEH	1	03/2005-10/2010	1998	177	240	1

ASTRA H GTC (A04) Hatchback 03/2005-10/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 Turbo (L08)	Z 20 LEH	1	08/2005-10/2010	1998	177	240	1

SIGNUM (Z03) Hatchback 05/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 (F48)	Z 18 XE	1	05/2003-07/2005	1796	90	122	1
1.8 (F48)	Z 18 XER	1	09/2005-12/2008	1796	103	140	1
2.0 Turbo (F48)	Z 20 NET	1	05/2003-12/2008	1998	129	175	1
2.2 direct (F48)	Z 22 YH	1	05/2003-09/2008	2198	114	155	1
2.8 V6 Turbo (F48)	Z 28 NEL	1	09/2005-12/2008	2792	169	230	1
2.8 V6 Turbo (F48)	Z 28 NET	1	01/2006-12/2008	2792	184	250	1
3.2 V6 (F48)	Z 32 SE	1	05/2003-07/2005	3175	155	211	1
1.9 CDTI (F48)	Z 19 DTL	2	08/2005-02/2008	1910	74	100	1
1.9 CDTI (F48)	Z 19 DT	2	04/2004-02/2008	1910	88	120	1
1.9 CDTI (F48)	Z 19 DTH	2	04/2004-02/2008	1910	110	150	1
2.0 DTI (F48)	Y 20 DTH	2	05/2003-04/2004	1995	74	100	1
2.2 DTI (F48)	Y 22 DTR	2	05/2003-04/2004	2172	92	125	1
3.0 V6 CDTI (F48)	Y 30 DT	2	05/2003-07/2005	2958	130	177	1
3.0 V6 CDTI (F48)	Z 30 DT	2	09/2005-12/2008	2958	135	184	1

VECTRA C (Z02) Saloon 04/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F69)	Z 16 XEP	1	08/2005-08/2008	1598	77	105	1
1.6 16V (F69)	Z 16 XE	1	04/2002-10/2005	1598	74	100	1
1.8 (F69)	Z 18 XEL	1	04/2002-07/2008	1796	81	110	1
1.8 (F69)	Z 18 XER	1	08/2005-08/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	04/2002-09/2008	1796	90	122	1
2.0 16V Turbo (F69)	Z 20 NET	1	03/2003-08/2008	1998	129	175	1
2.2 16V (F69)	Z 22 SE	1	04/2002-12/2008	2198	108	147	1
2.2 DGi (F69)	Z 22 YH	1	10/2003-08/2008	2198	114	155	1
3.2 V6 (F69)	Z 32 SE	1	08/2002-07/2006	3175	155	211	1
1.9 CDTI (F69)	Z 19 DTL	2	10/2005-08/2008	1910	74	100	1
1.9 CDTI (F69)	Z 19 DT	2	04/2004-01/2009	1910	88	120	1
1.9 CDTI (F69)	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI 16V (F69)	Y 20 DTH	2	04/2002-08/2006	1995	74	101	1
2.2 DTI 16V (F69)	Y 22 DTR	2	04/2002-12/2004	2172	86	117	1
2.2 DTI 16V (F69)	Y 22 DTR	2	04/2002-07/2004	2172	92	125	1
3.0 CDTI (F69)	Y 30 DT	2	02/2003-07/2005	2958	130	177	1

VECTRA C (Z02) Hatchback 08/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F68)	Z 16 XE	1	08/2005-08/2008	1598	74	100	1
1.6 (F68)	Z 16 XEP	1	01/2006-08/2008	1598	77	105	1
1.8 (F68)	Z 18 XER	1	08/2005-08/2008	1796	103	140	1
1.8 16V (F68)	Z 18 XEL	1	08/2002-12/2006	1796	81	110	1
1.8 16V (F68)	Z 18 XE	1	08/2002-09/2008	1796	90	122	1
2.0 16V Turbo (F68)	Z 20 NET	1	03/2003-08/2008	1998	129	175	1
2.2 16V (F68)	Z 22 SE	1	08/2002-08/2008	2198	108	147	1
2.2 DGi (F68)	Z 22 YH	1	10/2003-08/2008	2198	114	155	1
3.2 V6 (F68)	Z 32 SE	1	08/2002-07/2006	3175	155	211	1
1.9 CDTI (F68)	Z 19 DTL	2	06/2005-08/2008	1910	74	100	1
1.9 CDTI (F68)	Z 19 DT	2	04/2004-01/2009	1910	88	120	1
1.9 CDTI (F68)	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI 16V (F68)	Y 20 DTH	2	08/2002-08/2005	1995	74	101	1
2.2 DTI 16V (F68)	Y 22 DTR	2	08/2002-06/2008	2172	86	117	1
2.2 DTI 16V (F68)	Y 22 DTR	2	08/2002-07/2006	2172	92	125	1
3.0 CDTI (F68)	Y 30 DT	2	06/2003-07/2005	2958	130	177	1

VECTRA C (Z02) Estate 10/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F35)	Z 16 XEP	1	12/2005-08/2008	1598	77	105	1
1.6 16V (F35)	Z 16 XE	1	06/2004-09/2005	1598	74	100	1
1.8 (F35)	Z 18 XE	1	10/2003-09/2006	1796	90	122	1
1.8 (F35)	Z 18 XER	1	08/2005-08/2008	1796	103	140	1
2.0 Turbo (F35)	Z 20 NET	1	10/2003-08/2008	1998	129	175	1
2.2 direct (F35)	Z 22 YH	1	10/2003-08/2008	2198	114	155	1
3.2 V6 (F35)	Z 32 SE	1	10/2003-07/2005	3175	155	211	1
1.9 CDTI (F35)	Z 19 DTL	2	06/2005-08/2008	1910	74	100	1
1.9 CDTI (F35)	Z 19 DT	2	04/2004-01/2009	1910	88	120	1
1.9 CDTI (F35)	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI (F35)	Y 20 DTH	2	10/2003-08/2005	1995	74	100	1
2.2 DTI (F35)	Y 22 DTR	2	10/2003-12/2005	2172	92	125	1
3.0 V6 CDTI (F35)	Y 30 DT	2	10/2003-07/2005	2958	130	177	1

ZAFIRA / ZAFIRA FAMILY B (A05) MPV 07/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (M75)	Z 20 LEH	1	01/2006-12/2010	1998	177	241	1

PONTIAC

MATIZ G2 () Hatchback 10/2003-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	10/2003-12/2009	995	49	67	1

RAVON

MATIZ () Hatchback 10/2015-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8		1	10/2015-	796	38	52	1

SAAB

9-3 II (YS3F, E79, D79, D75) Saloon 09/2002-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1,8t	B207E	1	09/2002-02/2015	1998	110	150	1
1.8 i	Z 18 XE	1	01/2004-02/2015	1796	90	122	1
2.0 T	B207G	1	01/2007-02/2015	1998	120	163	1
2.0 T	B207L	1	09/2002-02/2015	1998	129	175	1
2.0 T	B207R	1	09/2002-02/2015	1998	154	210	1
2.0 T	A 20 NFT	1	01/2011-02/2015	1998	162	220	1
2.0 T	B207R	1	05/2009-02/2015	1998	177	241	1
2.0 t XWD	B207G	1	01/2007-02/2015	1998	120	163	3
2.0 t XWD	A 20 NFT	1	01/2008-02/2015	1998	162	220	3
2.0 t XWD	B207R	1	05/2009-02/2015	1998	177	241	3
2.0 T16		1	06/2006-02/2015	1998	143	194	1
2.0 Turbo Performance	B207R	1	04/2004-02/2015	1998	185	252	1
2.0 Turbo XWD	B207R	1	01/2008-02/2015	1998	154	210	3
2.8 Turbo V6	LP9	1	03/2005-02/2015	2792	169	230	1
2.8 Turbo V6	LP9	1	03/2005-02/2015	2792	184	250	1
2.8 Turbo V6	B284L	1	12/2007-02/2015	2792	188	256	1
2.8 Turbo V6 XWD	B284R	1	05/2008-12/2011	2792	206	280	3
1,8t BioPower	B207E	19	01/2007-02/2015	1998	110	150	1
1,8t BioPower	B207L	19	05/2009-02/2015	1998	129	175	1
2.0 t Biopower	B207H	19	01/2007-02/2015	1998	120	163	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower	B207R	19	06/2007-02/2015	1998	145	197	1
2.0 t Biopower	B207M	19	05/2009-02/2015	1998	147	200	1
2.0 t Biopower	B207R	19	09/2002-02/2015	1998	154	210	1
2.0 t Biopower	A 20 NFT	19	01/2011-02/2015	1998	162	220	1
2.0 t BioPower XWD	B207H	19	01/2008-02/2015	1998	120	163	3
2.0 t BioPower XWD	B207R	19	01/2008-02/2015	1998	154	210	3
2.0 t BioPower XWD	A 20 NFT	19	01/2008-02/2015	1998	162	220	3
1.9 TiD	Z 19 DT	2	09/2004-02/2015	1910	88	120	1
1.9 TiD	Z 19 DTH	2	09/2004-02/2015	1910	110	150	1
1.9 TTiD	A 19 DTR	2	12/2007-02/2015	1910	96	130	1
1.9 TTiD	A 19 DTR	2	12/2007-02/2015	1910	118	160	1
1.9 TTiD	A 19 DTR Z 19 DTR	2	12/2007-02/2015	1910	132	180	1
2.2 TiD	D223L	2	09/2002-02/2015	2171	92	125	1

9-3 II (YS3F) Convertible 08/2003-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1,8t	B207E	1	08/2003-02/2015	1998	110	150	1
1.8 i	Z 18 XE	1	01/2004-02/2015	1796	90	122	1
2.0	B207L	1	04/2006-09/2007	1998	143	194	1
2.0 T	B207G	1	01/2011-02/2015	1998	120	163	1
2.0 T	B207L	1	08/2003-02/2015	1998	129	175	1
2.0 T	B207R	1	08/2003-02/2015	1998	154	210	1
2.0 T	A 20 NFT	1	01/2011-02/2015	1998	162	220	1
2.0 t Biopower		1	06/2007-	1998	145	197	1
2.0 Turbo Performance	B207R	1	04/2004-02/2015	1998	185	252	1
2.8 Turbo V6	LP9	1	02/2006-02/2015	2792	169	230	1
2.8 Turbo V6	LP9	1	02/2006-02/2015	2792	184	250	1
2.8 Turbo V6	B284L	1	12/2007-02/2015	2792	188	256	1
1,8t BioPower	B207E	19	01/2007-02/2015	1998	110	150	1
2.0 t Biopower	B207H	19	01/2011-02/2015	1998	120	163	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower		19	06/2007-02/2015	1998	145	197	1
2.0 t Biopower	B207M	19	06/2007-02/2015	1998	147	200	1
2.0 t Biopower	A 20 NFT	19	01/2011-02/2015	1998	162	220	1
1.9 TiD	Z 19 DT	2	09/2004-02/2015	1910	88	120	1
1.9 TiD	Z 19 DTH	2	01/2006-02/2015	1910	110	150	1
1.9 TTiD	A 19 DTR	2	12/2007-02/2015	1910	96	130	1
1.9 TTiD	A 19 DTR	2	12/2007-02/2015	1910	118	160	1
1.9 TTiD	A 19 DTR Z 19 DTR	2	12/2007-02/2015	1910	132	180	1

9-3 II (E50) Estate 03/2005-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 i	Z 18 XE	1	03/2005-02/2015	1796	90	122	1
1.8 T	B207E	1	03/2005-02/2015	1998	110	150	1
1.8t 2.0	B207E	1	03/2005-02/2015	1998	110	150	1
2.0		1	04/2006-09/2007	1998	143	194	1
2.0 T	B207E	1	03/2005-02/2015	1998	110	150	1
2.0 T	B207G	1	01/2007-02/2015	1998	120	163	1
2.0 T	B207L	1	03/2005-02/2015	1998	129	175	1
2.0 T	B207M	1	02/2009-02/2015	1998	147	200	1
2.0 T	B207R	1	03/2005-02/2015	1998	154	209	1
2.0 T	A 20 NFT	1	01/2011-02/2015	1998	162	220	1
2.0 T	B207R	1	05/2009-02/2015	1998	177	241	1
2.0 t XWD	B207G	1	01/2007-02/2015	1998	120	163	3
2.0 t XWD	B207R	1	06/2008-02/2015	1998	154	209	3
2.0 t XWD	A 20 NFT	1	01/2011-02/2015	1998	162	220	3
2.0 t XWD	B207R	1	05/2009-02/2015	1998	177	241	3
2.0 T16	B207L	1	04/2006-02/2015	1998	143	194	1
2.8 Turbo V6	B284L	1	03/2005-02/2015	2792	169	230	1
2.8 Turbo V6	LP9	1	03/2005-02/2015	2792	184	250	1
2.8 Turbo V6	B284L	1	12/2007-02/2015	2792	188	256	1
2.8 Turbo V6 XWD	B284R	1	05/2008-12/2011	2792	206	280	3
2.0 t Biopower	B207E	19	01/2007-02/2015	1998	110	150	1
2.0 t Biopower	B207H	19	01/2011-02/2015	1998	120	163	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower	B207R	19	06/2007-02/2015	1998	145	197	1
2.0 t Biopower	B207M	19	02/2009-02/2015	1998	147	200	1
2.0 t Biopower	A 20 NFT	19	01/2011-02/2015	1998	162	220	1
2.0 t BioPower XWD	B207H	19	01/2007-02/2015	1998	120	163	3
2.0 t BioPower XWD	B207R	19	06/2008-02/2015	1998	154	209	3
2.0 t BioPower XWD	A 20 NFT	19	01/2011-02/2015	1998	162	220	3
1.9 TiD	Z 19 DT	2	03/2005-02/2015	1910	88	120	1
1.9 TiD	Z 19 DTH	2	03/2005-02/2015	1910	110	150	1
1.9 TTiD	A 19 DTR	2	12/2007-02/2015	1910	96	130	1
1.9 TTiD	A 19 DTR	2	12/2007-02/2015	1910	118	160	1
1.9 TTiD	Z 19 DTR	2	12/2007-02/2015	1910	132	180	1

9-3X (YS3) Estate 02/2009-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 t XWD	B207R	1	02/2009-02/2015	1998	154	209	3
2.0 T16 XWD	A 20 NFT	1	01/2011-02/2015	1998	162	220	3
2.0 t BioPower XWD	B207R	19	02/2009-12/2012	1998	154	209	3
2.0 t BioPower XWD	A 20 NFT	19	01/2011-12/2012	1998	162	220	3
1.9 TTiD AWD	A 19 DTR Z 19 DTR	2	02/2009-12/2012	1910	132	180	3

UZ-DAEWOO

MATIZ () Hatchback 09/1998-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8	F8CV	1	09/1998-	796	38	52	1
1.0	B10S	1	04/2003-	995	46	63	1

VAUXHALL

ASTRA Mk IV (G) (T98) Hatchback 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 DTI 16V (F48)	Y 20 DTH	2	08/1999-05/2005	1995	74	101	1

ASTRA Mk V (H) (A04) Hatchback 01/2004-03/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 Turbo (L48)	Z 20 LEH	1	01/2004-05/2009	1998	177	240	1

ASTRA Mk V (H) Sport Hatch (A04) Hatchback 02/2005-11/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 VXR (L08)	Z 20 LEH	1	02/2009-11/2010	1998	176	240	1

SIGNUM (Z03) Hatchback 03/2003-10/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	Z 18 XE	1	06/2003-07/2005	1796	90	122	1
1.8	Z 18 XER	1	08/2005-05/2008	1796	103	140	1
2.0 i Turbo	Z 20 NET	1	03/2003-10/2008	1998	129	175	1
2.2 i	Z 22 YH	1	05/2003-05/2008	2198	114	155	1
2.8 V6 Turbo	Z 28 NEL	1	07/2005-05/2008	2792	169	230	1
3.2 V6	Z 32 SE	1	05/2003-05/2008	3175	155	211	1
1.9 CDTI	Z 19 DT	2	04/2004-03/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-03/2008	1910	110	150	1
2.0 DTI	Y 20 DTH	2	05/2003-04/2004	1994	74	100	1
2.2 DTI	Y 22 DTR	2	05/2003-05/2008	2172	92	125	1
3.0 CDTi	Y 30 DT	2	05/2003-05/2008	2958	130	177	1
3.0 V6 CDTI	Z 30 DT	2	07/2005-06/2008	2959	135	184	1

VECTRA Mk II (C) (Z02) Saloon 01/2000-10/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	01/2006-07/2008	1598	77	105	1
1.6 16V		1	06/2004-07/2008	1598	74	100	1
1.8		1	04/2002-07/2008	1796	81	110	1
1.8	Z 18 XER	1	01/2006-07/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	04/2002-07/2008	1796	90	122	1
2.0 16V Turbo	Z 20 NET	1	01/2000-10/2008	1998	129	175	1
2.2 16V	Z 22 SE	1	01/2002-10/2008	2198	108	147	1
2.2 direct	Z 22 YH	1	01/2002-10/2008	2198	114	155	1
3.2 V6	Z 32 SE	1	06/2003-07/2008	3175	155	211	1
1.8 16V Dualfuel	Z 18 XE	18	04/2002-07/2008	1796	90	122	1
1.9 CDTI		2	10/2005-07/2008	1910	74	100	2
1.9 CDTI	Z 19 DT	2	04/2002-09/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI 16V	Y 20 DTH	2	04/2002-10/2008	1995	74	101	1
2.2 DTI 16V	Y 22 DTR	2	04/2002-10/2008	2172	92	125	1
3.0 V6 CDTI	Y 30 DT	2	06/2003-08/2005	2958	130	177	1

VECTRA Mk II (C) GTS (Z02) Hatchback 08/2002-05/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	01/2006-07/2008	1598	77	105	1
1.6 16V		1	06/2004-07/2008	1598	74	100	1
1.8	Z 18 XER	1	01/2006-07/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	08/2002-07/2008	1796	90	122	1
2.0 16V Turbo	Z 20 NET	1	03/2003-07/2008	1998	129	175	1
2.2 16V	Z 22 SE	1	08/2002-07/2008	2198	108	147	1
2.2 direct	Z 22 YH	1	10/2003-08/2005	2198	114	155	1
3.2 V6	Z 32 SE	1	08/2002-07/2008	3175	155	211	1
1.8 16V Dualfuel	Z 18 XE	18	08/2002-07/2008	1796	90	122	1
1.9 CDTI		2	10/2005-07/2008	1910	74	100	2
1.9 CDTI	Z 19 DT	2	08/2002-07/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-07/2008	1910	110	150	1
2.0 DTI 16V	Y 20 DTH	2	08/2002-07/2008	1995	74	101	1
2.2 DTI 16V	Y 22 DTR	2	08/2002-07/2008	2172	92	125	1
3.0 V6 CDTI	Y 30 DT	2	06/2003-08/2005	2958	130	177	1

VECTRA Mk II (C) (Z02) Estate 10/2003-05/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V		1	06/2004-07/2008	1598	74	100	1
1.8	Z 18 XER	1	01/2006-07/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	10/2003-08/2005	1796	90	122	1
2.0 16V Turbo	Z 20 NET	1	10/2003-07/2008	1998	129	175	1
2.2 direct	Z 22 YH	1	10/2003-07/2008	2198	114	155	1
3.2 V6	Z 32 SE	1	10/2003-08/2005	3175	155	211	1
1.9 CDTI		2	10/2005-07/2008	1910	74	100	2
1.9 CDTI	Z 19 DT	2	04/2004-07/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-05/2009	1910	110	150	1
2.0 DTI 16V	Y 20 DTH	2	10/2003-07/2008	1995	74	101	1
2.2 DTI 16V	Y 22 DTR	2	10/2003-07/2008	2172	92	125	1
3.0 V6 CDTI	Y 30 DT	2	10/2003-08/2005	2958	130	177	1

ZAFIRA Mk II (B) (A05) MPV 04/2005-11/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	Z 20 LEH	1	01/2006-11/2014	1998	176	240	1

Return
