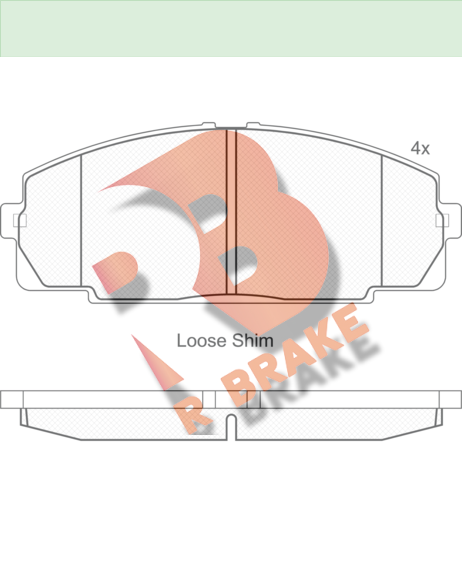

Product RB1170

Description
Brake pad set
Axe
Front
No. of Pieces
4
Barcode
EAN13 Code
8424073127334
QR Code
Url
https://catalogonuevo.rbrake.com/Producto/Details?idProducto=RB1170
Weight (gr.)
1714
System
Akebono
R90 Homologation
R90 90R-01109/470
Measures
145.4x56.95x15.5
Reference applications
Brand OE Reference
TOYOTA 04465-25040
TOYOTA 04465-25050
TOYOTA 04465-25060
TOYOTA 04465-25090
TOYOTA 04465-26070
TOYOTA 04465-26090
TOYOTA 04465-26100
TOYOTA 04465-26120
TOYOTA 04465-26130
TOYOTA 04465-26160
TOYOTA 04465-26170
TOYOTA 04465-26180
TOYOTA 04465-26240
TOYOTA 04465-26250
TOYOTA 04465-26260
TOYOTA 04465-26300
TOYOTA 04465-26301
TOYOTA 04465-26310
TOYOTA 04465-26320
TOYOTA 04465-26340
TOYOTA 04465-26350
TOYOTA 04465-26370
TOYOTA 04465-26390
TOYOTA 04465-35320
TOYOTA 04465-YZZAD
TOYOTA 04465-YZZAJ
TOYOTA 04491-26090
TOYOTA 04491-26100
TOYOTA 04491-26110
TOYOTA 04491-26111
TOYOTA 04491-26160
TOYOTA 04491-26170
TOYOTA 04491-26180
TOYOTA 04491-26190
TOYOTA 04491-26191
TOYOTA 04491-26210
TOYOTA 04491-26260
TOYOTA 04491-26261
TOYOTA 04491-26262
TOYOTA 04491-26270
TOYOTA 04491-26320
TOYOTA 04491-26340
TOYOTA AY040-TY046
TOYOTA V9115-0012
TOYOTA V9118-1020
TOYOTA V9118-A020
Maker Cross reference
ATE 13.0460-5722.2
ATE 605722
B.M. DB1328
BENDIX ANTIGUO 572367B
BENDIX-ROULUNDS 510808
BOSCH 0 986 424 319
BREMBO P 83 092
DELPHI LOCKHEED LP989
FERODO FDB554
FERODO FVR1884
FMSI D1344-8455
FMSI D2316-9552
GIRLING 6107709
HELLA-PAGID T3083
MINTEX MDB1398
NECTO FD7241V
ROAD HOUSE 2421.00
ROAD HOUSE 2421.20
TEXTAR 21468 155 0 4
TEXTAR 21468 155 0 4 T4090
TEXTAR 2146801
TRW GDB770
VALEO 598947
WVA 21468
WVA 24158
WVA 24159
WVA 24160
DAIHATSU
DELTA (U3_) Platform/Chassis 05/1999-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 Di 2 10/2003- 2982 85 116 2
PREMIER
118 NE () Saloon 01/1985-12/2001
Vehicle Engine Fuel Date CC KW CV Traction
1.4 1 05/1986-10/1996 1438 55 75 1
TOYOTA
COMMUTER () Bus 01/2000-
Vehicle Engine Fuel Date CC KW CV Traction
LH184R All models 2 01/2000- 2
DYNA (LH8_) Platform/Chassis 08/1985-05/1995
Vehicle Engine Fuel Date CC KW CV Traction
2.4 D (LH80_, LY50_, LY60_)

2L

 2 08/1985-05/1995 2446 61 83 2
2.4 D 100 2 08/1985- 2395 54 74 2
2.4 D 100 2 08/1985- 2395 54 74 2
DYNA (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8_) Platform/Chassis 05/1999-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (TRY220, TRY230) 1 08/2003- 1998 98 133 2
2.0 4WD (TRY220, TRY230) 1 09/2006- 1998 98 133 3
2.0 LPG (TRY231) 18 09/2006- 1998 85 116 2
2.0 LPG 4WD (TRY281) 18 09/2006- 1998 85 116 3
2.5 D4d (KDY220_, KDY230_, KDY220R, KDY230R)

2KD-FTV

 2 07/2001- 2494 65 88 2
2.5 D4d (KDY230, KDY250)

2KD-FTV

 2 08/2001- 2494 75 102 2
3.0 D4d (KDY221, KDY231, KDY251, KDY261)

1KD-FTV

 2 10/2009- 2982 100 136 2
3.0 D4d (KDY221, KDY231, KDY251, KDY261)

1KD-FTV

 2 10/2009- 2982 106 144 2
3.0 D4d (KDY261_, KDY251_, KDY231_, KDY221_, KDY221R,...

1KD-FTV

 2 09/2006- 2982 80 109 2
3.0 D4d (LY220, LY230)

5L

 2 08/2001- 2986 65 88 2
3.0 D4d 4WD (KDY271) 2 09/2006- 2982 106 144 3
4.6 D4d (XZU307, XZU312, XZU322, XZU337, XZU342, XZU347,... 2 05/1999- 4613 96 131 2
DYNA (XZU3_, XZU4_, WU4_, WU3_, LY2_, KDY2_) Bus 08/2001-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 D4d 2 08/2001-02/2008 2982 81 110 2
3.0 D4d (KDY241) 2 09/2006- 2982 106 144 2
DYNA 100 (YH_) Platform/Chassis 08/1985-04/1995
Vehicle Engine Fuel Date CC KW CV Traction
1.8 (YH81_, YH81R)

2Y

 1 08/1985-04/1995 1812 58 79 2
DYNA 100 (LY1_, YY1_) Platform/Chassis 05/1995-07/2001
Vehicle Engine Fuel Date CC KW CV Traction
2.4 D (LY100_, LY100R)

2L

 2 05/1995-07/2001 2446 54 73 2
2.4 D (LY100_)

2L

 2 05/1995-07/2001 2446 58 79 2
DYNA 200 () Platform/Chassis 06/1995-12/2002
Vehicle Engine Fuel Date CC KW CV Traction
2.2 (YU210) 1 06/1995-07/2001 2237 69 94 2
2.7 (RZU100) 1 06/1995-07/2001 2694 92 125 2
3.7 D (BU101, BU141, BU211, BU221)

14B

 2 06/1995-12/2002 3661 71 97 2
4.1 Di (BU102, BU112, BU122, BU132, BU142, BU162, BU172,...

15B-F

15B-FT

 2 06/1995-05/1999 4104 92 125 2
4.1 TDi (BU223, BU102, BU222)

15B-FTE

 2 06/1995-05/1999 4104 110 150 2
4.1 TDi (BU223)

15B-FTE

 2 06/1999-07/2001 4104 125 170 2
DYNA 250 () Platform/Chassis 06/1995-07/2001
Vehicle Engine Fuel Date CC KW CV Traction
3.7 D (BU211, BU221) 2 06/1995-07/2001 3661 71 97 2
DYNA 250 () Van 06/1995-12/2003
Vehicle Engine Fuel Date CC KW CV Traction
4.1 D (BU212, BU222) 2 06/1995-06/1999 4104 92 125 2
4.1 TDi (BU223) 2 07/1999-12/2002 4104 125 170 2
4.6 D (XZU307) 2 06/1995-11/2002 4613 88 120 2
4.6 TDi (XZU307) 2 06/2003-12/2003 4613 108 147 2
DYNA 300 () Platform/Chassis 06/1995-12/2002
Vehicle Engine Fuel Date CC KW CV Traction
2.4

2RZ-FE

 1 06/1998-07/2001 2438 103 140 2
2.7

3RZ-FE

 1 06/1995-06/1999 2694 92 125 2
3.7 D

14B

 2 06/1995-06/1999 3661 71 97 2
4.1 D

15B-FTE

 2 06/1995-06/1999 4104 92 125 2
4.1 Tdi (XZU300, XZU320, XZU330, XZU340) 2 06/1999-12/2002 4104 125 170 2
DYNA 400 (BU_, XZU_) Platform/Chassis 10/2000-12/2006
Vehicle Engine Fuel Date CC KW CV Traction
4.1 TDi (BU410, BU420, BU430)

15B-FTE

 2 11/2002-12/2006 4104 125 170 2
4.6 D (XZU402, XZU412, XZU422)

S05C

 2 10/2000-09/2006 4613 88 120 2
4.6 TDi (XZU404, XZU342, XZU414, XZU424, XZU434)

S05C-TB

 2 06/2003-09/2006 4613 108 147 2
GRANVIA (_H2_, _H1_) MPV 08/1995-12/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (RCH11W_, RCH11W)

3RZ-FE

 1 08/1995-09/1998 2694 107 145 2
3.4 (VCH10W, VCH16W, VCH26W) 1 08/1995-12/2004 3378 140 190 2
3.4 4WD (VCH16, VCH28)

5VZ-FE

 1 08/1997-05/2002 3378 132 180 3
3.4 4x4 (VCH16)

5VZ-FE

 1 08/1997-12/2004 3378 140 190 3
3.0 TD (KCH10)

1KZ-TE

 2 08/1995-12/2002 2982 103 140 2
3.0 TD 4x4 (KCH16)

1KZ-TE

 2 08/1995-12/2002 2982 103 140 3
3.0 TDi (KCH10)

1KZ-TE

 2 08/1995-12/2004 2982 96 131 2
HiAce III (_H5_, _H6_, _H7_, _H8_, _H9_) Bus 11/1982-09/2007
Vehicle Engine Fuel Date CC KW CV Traction
1.8 (YH50, YH60)

2Y

 1 03/1983-07/1989 1812 58 79 2
2.0 1 08/1987-07/1989 1998 65 88 1
2.0 (YH51, YH61)

3Y

 1 01/1985-08/1989 1998 65 88 2
2.2 (YH56, YH66, YH73)

4Y

 1 08/1986-08/1989 2237 69 94 2
2.2 D (LH50, LH60)

L

 2 12/1982-11/1989 2188 49 67 2
2.4 D (LH51, LH61, LH66)

2L

 2 04/1984-08/1989 2446 55 75 2
2.4 D 4WD (LH56, LH66)

2L

 2 01/1987-08/1989 2446 54 73 3
HiAce III (_H5_, _H6_, _H7_, _H8_, _H9_) Van 12/1982-08/2005
Vehicle Engine Fuel Date CC KW CV Traction
1.8 (YH50, YH60)

2Y

 1 12/1982-07/1989 1812 58 79 2
2.0 (YH51, YH61)

3Y

 1 12/1982-08/1989 1998 65 88 2
2.2 (YH56, YH66, YH53, YH63)

4Y

 1 08/1986-08/1989 2237 69 94 2
2.2 4WD (YH56, YH66)

4Y

 1 08/1987-08/1989 2237 69 94 3
2.2 D (LH50, LH60)

L

 2 12/1982-11/1989 2188 49 67 2
2.4 D (LH61, LH51)

2L

 2 12/1982-11/1989 2446 55 75 2
2.4 D 4WD (LH56, LH66)

2L

 2 04/1984-07/1989 2446 55 75 3
HiAce IV / QUANTUM (_H1_) Bus 08/1987-12/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (RZH102, RZH112)

1RZ

 1 08/1989-04/1998 1998 74 101 2
2.0 (RZH124) 1 11/1996-10/2000 1998 81 110 2
2.4 (RZH103, RZH125)

2RZ-E

 1 08/1995-12/2004 2438 85 116 2
2.4 (RZH103, RZH183)

2RZ-E

 1 08/1989-08/2003 2438 88 120 2
2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_, RZH103R,...

2RZ-E

 1 08/1989-07/1995 2438 88 120 3
3.4 (VCH10) 1 08/1995-08/2001 3378 131 178 2
3.4 4WD (VCH16) 1 08/1995-08/2001 3378 131 178 3
2.4 D (LH100, LH110, LH104, LH114)

2L

 2 08/1989-12/2004 2446 57 78 2
2.4 D (LH102)

2L

 2 08/1989-08/1995 2446 55 75 2
2.4 D 4WD (LH100, LH102, LH110, LH140) 2 09/1989-08/1995 2446 57 78 3
2.4 D 4WD (LH51_, LH61_, LH66_, LH71_, LH51R, LH61R,...

2L

 2 08/1987-08/1995 2446 55 75 3
2.5 D-4D 4WD (KLH18_) 2 08/2001-08/2004 2494 75 102 3
3.0 D (LH174) 2 08/1998-08/2004 2986 65 88 2
3.0 TD (KCH40W)

1KZ-TE

 2 08/1999-05/2002 2982 104 141 2
HiAce IV (_H1_) Van 08/1989-02/2005
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (RZH102, RZH112)

1RZ

 1 02/1990-08/2004 1998 74 101 2
2.0 (RZH102, RZH112) 1 11/1996-10/2000 1998 81 110 2
2.4 (RZH10)

2RZ-E

 1 08/1989-08/1995 2438 88 120 2
2.4 (RZH103, RZH113) 1 08/1989-07/1998 2438 85 116 2
2.4 4WD (RCH103_, RCH113_, RCH103R, RCH113R)

2RZ-E

 1 08/1989-08/1995 2438 88 120 3
2.4 D (LH102, LH104, LH112)

2L

 2 09/1989-08/1995 2446 57 78 2
2.4 D (LH112)

2L

 2 08/1989-08/2004 2446 55 75 2
2.4 D 4WD

2L

 2 09/1989-08/1995 2446 57 78 3
2.4 D 4WD (LH108, LH118)

2L

 2 08/1989-07/1999 2446 55 75 3
2.8 D (LH105, LH103, LH113)

3L

 2 08/1989-08/2000 2779 61 83 2
3.0 D (LH162, LH172) 2 08/1998-08/2004 2986 65 88 2
HiAce IV (__H1_, __H2_) Bus 08/1995-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 (RCH12, RCH22)

2RZ-E

 1 08/1995-04/1998 2438 85 115 2
2.4 4WD (RCH18)

2RZ-E

 1 08/1995-04/1998 2438 85 116 3
2.7 (RCH13, RCH23)

3RZ-FE

 1 04/1998-11/2001 2694 105 143 2
2.7 (RCH13, RCH23)

3RZ-FE

 1 07/1998-12/2006 2694 106 144 2
2.7 (TRH203, TRH213, TRH214, TRH224)

2TR-FE

 1 01/2005-05/2019 2694 111 151 2
2.7 4WD (RCH19)

3RZ-FE

 1 04/1998-08/2006 2694 105 143 3
2.7 4WD (RCH19)

3RZ-FE

 1 07/1998-06/2005 2694 106 144 3
2.4 D (LH102, LH112, LH114, LXH12, LXH22)

2L

 2 08/1995-08/2001 2446 61 83 2
2.4 D (LXH12, LXH22)

2L

 2 08/1995-08/2001 2446 58 79 2
2.4 D (LXH12)

2L

 2 08/1995-08/2001 2446 55 75 2
2.4 TD (LXH12, LXH22)

2L-T

 2 08/1995-08/2001 2446 66 90 2
2.4 TD 4WD (LXH18, LXH28)

2L-T

 2 08/1995-08/2001 2446 66 90 3
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 09/2006-12/2012 2494 70 95 2
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 08/2001-08/2006 2494 75 102 2
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 08/2006-12/2012 2494 86 117 2
2.5 D-4D (KLH12)

2KD-FTV

 2 08/2001-08/2006 2494 65 88 2
2.5 D-4D 4WD (KLH18)

2KD-FTV

 2 11/2001-08/2006 2494 75 102 3
2.5 D-4D 4WD (KLH18)

2KD-FTV

 2 09/2006-12/2012 2494 86 117 3
HiAce IV (LXH1_, RCH1_, KLH1_) Platform/Chassis 08/1995-08/2006
Vehicle Engine Fuel Date CC KW CV Traction
2.4 D 2 07/1999-08/2006 2446 55 75 2
2.4 D 2 08/1995-08/2006 2446 61 83 2
HiAce IV (H100) Bus 08/1995-08/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.0 1 08/1995-04/1998 1998 74 101 1
2.8 D 2 08/1995-08/2000 2779 61 83 2
HiAce IV (H100) Van 08/1995-08/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.8 D 2 08/1995-08/2000 2779 61 83 2
HiAce IV / HiAce SBV (__H1_, __H2_) Van 08/1995-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 (RCH12, RCH22)

2RZ-E

 1 08/1995-11/2003 2438 85 116 2
2.4 (RZH10)

2RZ-E

 1 08/1995-08/2004 2438 88 120 2
2.4 4WD (RCH18, RCH28)

2RZ-E

 1 08/1995-04/1998 2438 85 116 3
2.7 (RCH13, RCH23)

3RZ-FE

 1 04/1998-06/2005 2694 105 143 2
2.7 4WD (RCH19, RCH29)

3RZ-FE

 1 07/1998-06/2005 2694 106 144 3
2.4 D (LXH12, LXH22)

2L

 2 08/1995-08/2001 2446 55 75 2
2.4 D (LXH12, LXH22)

2L

 2 08/1995-08/2001 2446 58 79 2
2.4 D (LXH12, LXH22)

2L

 2 08/1995-08/2001 2446 61 83 2
2.4 TD (LXH12, LXH22)

2L-T

 2 08/1995-08/2001 2446 66 90 2
2.4 TD 4WD (LXH18, LXH28)

2L-T

 2 08/1995-08/2001 2446 66 90 3
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 08/2001-08/2006 2494 65 88 2
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 09/2006-12/2012 2494 70 95 2
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 08/2001-08/2006 2494 75 102 2
2.5 D-4D (KLH12, KLH22)

2KD-FTV

 2 09/2006-12/2012 2494 86 117 2
2.5 D-4D 4WD (KLH18, KLH28)

2KD-FTV

 2 08/2001-08/2004 2494 65 88 3
2.5 D-4D 4WD (KLH18, KLH28)

2KD-FTV

 2 08/2001-08/2006 2494 75 102 3
2.5 D-4D 4WD (KLH28, KLH18)

2KD-FTV

 2 09/2006-12/2012 2494 86 117 3
HiAce V / QUANTUM (TRH2__, KDH2__, LH2__, GDH2__) Van 06/2004-
Vehicle Engine Fuel Date CC KW CV Traction
2.5 D-4D

2KD-FTV

 2 09/2006- 2494 70 95 2
2.5 D-4D (KDH200, KDH202, KDH212, KDH222)

2KD-FTV

 2 09/2006- 2494 86 117 2
3.0 D 2 01/2005- 2986 65 88 2
3.0 D (KDH200, KDH223) 2 01/2005- 2982 75 102 2
HiAce V / COMMUTER (TRH2__, KDH2__, LH2__, GDH2__) Bus 08/2004-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (TRH200) 1 11/2008- 1998 98 133 2
2.7 (TRH223)

2TR-FE

 1 01/2005- 2694 111 151 2
2.7 4WD (TRH219W)

2TR-FE

 1 01/2005- 2694 111 151 3
2.5 D-4D 4WD (KDH205, KDH227, KDH225)

2KD-FTV

 2 08/2004-09/2007 2494 94 128 3
3.0 D (LH202_, LH212_, LH222_, LH202R, LH212R, LH222R) 2 01/2005- 2986 65 88 2
TOYOACE VII (_Y1_, _Y2_) Platform/Chassis 10/1996-06/2011
Vehicle Engine Fuel Date CC KW CV Traction
3.0 D 2 08/2001-06/2011 2986 67 91 2
3.0 D (LY235_, LY235)

5L

 2 08/2001-06/2011 2986 65 88 2
Return
