Product 610444RB - Web Catalogo

Description: Wear indicators
Axe: Front
No. of Pieces: 2
Barcode: 8424073186829
Url: https://catalogonuevo.rbrake.com/Producto/Details?idProducto=610444RB
Weight (gr.): 100

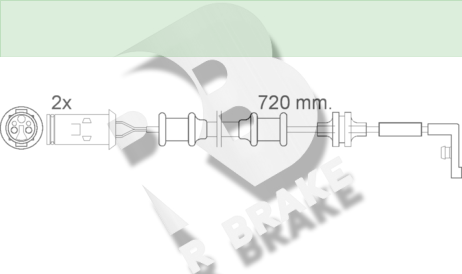

Measures: 746 mm.

Reference applications

Brand	OE Reference
OPEL	12 38 442
OPEL	13 122 323
OPEL	6 238 075
VAUXHALL	90 498 321

Maker	Cross reference
ATE	24.8190-0718.2
ATE	620718
BENDIX ANTIGUO	581375
BOSCH	1 987 474 973
BREMBO	A 00 259
DELPHI LOCKHEED	LZ0152
FERODO	FWI257
GIRLING	6317102
HELLA-PAGID	P8032
MINTEX	MWI0194
ROAD HOUSE	001027
TEXTAR	96990 0233 0 1
TEXTAR	98023300
TRW	GIC171
WVA	23065
WVA	23066
WVA	23067

CHEVROLET

VIVA () Saloon 09/2003-03/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8		1	09/2003-03/2008	1796	90	122	1
1.8	2H9	1	09/2003-03/2008	1796	92	125	1

OPEL

ASTRA G (T98) Hatchback 02/1998-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	08/2003-05/2004	998	44	60	1
1.2 16V (F08, F48)	X 12 XE	1	02/1998-09/2000	1199	48	65	1
1.2 16V (F08, F48)	Z 12 XE	1	09/2000-01/2005	1199	55	75	1
1.4 (F08, F48)	Z 14 XEP	1	09/2007-12/2009	1364	66	90	1
1.4 16V (F08, F48)	X 14 XE Z 14 XE	1	02/1998-01/2005	1389	66	90	1
1.6		1	06/2002-03/2004	1598	70	95	1
1.6 (F08, F48)	X 16 SZR	1	02/1998-09/2000	1598	55	75	1
1.6 (F08, F48)	Z 16 SE	1	09/2000-01/2005	1598	62	84	1
1.6 (F08, F48)	Z 16 XEP	1	11/2002-01/2005	1598	76	103	1
1.6 16V (F08, F48)	C 16 SEL X 16 XEL Z 16 XE	1	02/1998-01/2005	1598	74	101	1
1.8 (F08, F48)		1	02/2003-01/2004	1796	81	110	1
1.8 16V (F08, F48)	X 18 XE1	1	02/1998-09/2000	1796	85	116	1
1.4 LPG (F08, F48)	X 14 XE Z 14 XE	18	02/1998-01/2005	1389	66	90	1
1.6 LPG (F08, F48)		18	03/1998-01/2005	1598	55	75	1
1.6 LPG (F08, F48)	Z 16 XEP	18	11/2002-06/2007	1598	76	103	1
1.6 LPG (F48)		18	03/1998-01/2005	1598	62	84	1
1.7 CDTI (F08, F48)	Z 17 DTL	2	04/2003-01/2005	1686	59	80	1
1.7 DTI 16V (F08, F48)	Y 17 DT	2	02/2000-01/2005	1686	55	75	1
1.7 TD (F08, F48)	X 17 DTL	2	02/1998-08/2000	1699	50	68	1
2.0 DI (F08, F48)	X 20 DTL Y 20 DTL	2	02/1998-01/2005	1995	60	82	1

ASTRA G (T98) Estate 02/1998-07/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V (F35)	X 12 XE	1	02/1998-09/2000	1199	48	65	1
1.2 16V (F35)	Z 12 XE	1	09/2000-07/2004	1199	55	75	1
1.4 16V (F35)	X 14 XE Z 14 XE	1	06/1998-07/2004	1389	66	90	1
1.6 (F35)	X 16 SZR	1	02/1998-09/2000	1598	55	75	1
1.6 (F35)	Z 16 SE	1	09/2000-07/2004	1598	62	84	1
1.6 (F35)	Z 16 XEP	1	12/2002-05/2004	1598	76	103	1
1.6 16V (F35)	X 16 XEL Z 16 XE	1	02/1998-07/2004	1598	74	101	1
1.8 16V (F35)	X 18 XE1	1	02/1998-09/2000	1796	85	116	1
1.8 16V (F35)	Z 18 XE	1	09/2000-07/2004	1796	92	125	1
1.6 CNG (F35)	Z 16 YNG	16	03/2003-07/2004	1598	71	97	1
1.4 LPG (F35)	X 14 XE Z 14 XE	18	03/1998-07/2004	1389	66	90	1
1.6 LPG (F35)		18	03/1998-09/2000	1598	55	75	1
1.6 LPG (F35)		18	09/2000-07/2004	1598	62	84	1
1.6 LPG (F35)	X 16 XEL Z 16 XE	18	03/1998-07/2004	1598	74	101	1
1.6 LPG (F35)	Z 16 XEP	18	06/2002-07/2004	1598	76	103	1
1.7 CDTI (F35)	Z 17 DTL	2	04/2003-05/2004	1686	59	80	1
1.7 DTI 16V (F35)	Y 17 DT	2	02/2000-07/2004	1686	55	75	1
1.7 TD (F35)	X 17 DTL	2	02/1998-08/2000	1699	50	68	1
2.0 DI (F35)	X 20 DTL Y 20 DTL	2	02/1998-07/2004	1995	60	82	1

ASTRA G (T98) Saloon 03/1998-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V (F69)	X 12 XE	1	09/1998-09/2000	1199	48	65	1
1.2 16V (F69)	Z 12 XE	1	09/2000-01/2005	1199	55	75	1
1.4 (F69)	Z 14 XEP	1	09/2007-12/2009	1364	66	90	1
1.4 16V (F69)	X 14 XE Z 14 XE	1	09/1998-01/2005	1389	66	90	1
1.6 (F69)	X 16 SZR	1	09/1998-09/2000	1598	55	75	1
1.6 (F69)	Z 16 SE	1	09/2000-01/2005	1598	62	84	1
1.6 (F69)	Z 16 XEP	1	12/2002-12/2009	1598	76	103	1
1.6 16V (F69)	X 16 XEL Z 16 XE	1	09/1998-01/2005	1598	74	101	1
1.8		1	02/2003-01/2005	1796	81	110	1
1.8 16V (F69)	X 18 XE1	1	09/1998-09/2000	1796	85	116	1
1.8 16V (F69)	Z 18 XE	1	06/2000-01/2005	1796	92	125	1
1.4 LPG (F69)	X 14 XE Z 14 XE	18	03/1998-01/2005	1389	66	90	1
1.6 LPG (F69)		18	10/1998-06/2000	1598	55	75	1
1.6 LPG (F69)		18	09/2000-01/2005	1598	62	84	1
1.7 CDTI (F69)	Z 17 DTL	2	04/2003-12/2009	1686	59	80	1
1.7 DTI 16V (F69)	Y 17 DT	2	02/2000-01/2005	1686	55	75	1
1.7 TD (F69)	X 17 DTL	2	09/1998-08/2000	1699	50	68	1
2.0 DI (F69)	X 20 DTL Y 20 DTL	2	09/1998-01/2005	1995	60	82	1

ASTRA G (F70) Estate Van 09/1998-04/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2		1	09/1998-	1195	48	65	1
1.2 (F70)	X 12 XE	1	09/1998-08/2000	1199	48	65	1
1.2 ABS		1	09/1998-	1195	48	65	1
1.4		1	09/1998-	1395	65	89	1
1.4 (F70)	X 14 XE Z 14 XE	1	09/1998-04/2005	1389	66	90	1
1.4 ABS		1	09/1998-	1395	65	89	1
1.4 ABS		1	09/1998-	1395	65	89	1
1.6 (F70)	X 16 SZR	1	01/1999-09/2000	1598	55	75	1
1.6 (F70)	Z 16 SE	1	09/2000-04/2005	1598	62	84	1
1.6 (F70)	C 16 SEL Z 16 XE	1	09/1998-01/2004	1598	74	101	1
1.6 (F70)	Z 16 XEP	1	02/2004-11/2004	1598	76	103	1
1.6 Automatic..		1	09/1998-	1595	74	100	1
1.6 Automatic.. ABS		1	09/1998-	1595	74	100	1
1.6 LPG (F70)		18	01/1999-09/2000	1598	55	75	1
1.6 LPG (F70)		18	12/2000-04/2005	1598	62	84	1
1.7 CDTi (F70)	Z 17 DTL	2	07/2003-11/2004	1686	59	80	1
1.7 DTI 16V (F70)	Y 17 DT	2	02/2000-04/2005	1686	55	75	1
1.7 TD (F70)	X 17 DTL	2	01/1999-04/2005	1699	50	68	1
2.0 DI (F70)	X 20 DTL Y 20 DTL	2	01/1999-04/2005	1995	60	82	1
2.0 DTI (F70)	Y 20 DTH	2	09/2000-04/2005	1995	74	101	1

ASTRA G (T98) Coupe 03/2000-06/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V (F07)	Z 16 XEP	1	03/2000-05/2005	1598	76	103	1

ASTRA G (T98) Convertible 03/2001-10/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F67)	Z 16 XEP	1	01/2003-10/2005	1598	76	103	1
1.6 16V (F67)	Z 16 XE	1	03/2001-10/2005	1598	74	101	1
1.8 16V (F67)	Z 18 XE	1	03/2001-10/2005	1796	92	125	1

ASTRA G CLASSIC Caravan (F35) Estate 03/2004-07/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (F35)	Z 14 XEP	1	10/2007-07/2009	1364	66	90	1

VAUXHALL

ASTRAVAN Mk IV (G) (T98) Estate Van 01/1993-08/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	Z 14 XE	1	09/2000-05/2005	1389	66	90	1
1.6 i	X 16 SZR	1	08/1998-09/2000	1598	55	75	1
1.6 i	Z 16 SE	1	09/2000-08/2006	1598	62	84	1
1.6 Dualfuel	X 16 SZR	18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel	Z 16 SE	18	09/2000-10/2004	1598	62	84	1
1.6 Dualfuel	Z 16 XE	18	07/2000-08/2005	1598	74	101	1
1.6 Dualfuel 16V	Z 16 XEP	18	10/2004-12/2005	1598	77	105	1
1.7 DTI 16V	Y 17 DT	2	04/2001-08/2006	1686	55	75	1
1.7 TD	X 17 DTL	2	08/1998-08/2006	1700	50	68	1
2.0 DI	X 20 DTL Y 20 DTL	2	08/1998-08/2006	1995	60	82	1

ASTRA Mk IV (G) (T98) Hatchback 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V (F08, F48)		1	02/1998-09/2000	1199	48	65	1
1.2 16V (F08, F48)		1	09/2000-05/2005	1199	55	75	1
1.4 16V (F08, F48)	X 14 XE Z 14 XE	1	02/1998-05/2005	1389	66	90	1
1.6 (F08, F48)	X 16 SZR	1	02/1998-09/2000	1598	55	75	1
1.6 (F08, F48)	Z 16 SE	1	09/2000-05/2005	1598	62	84	1
1.6 16V (F08, F48)	X 16 XEL Z 16 XE	1	02/1998-05/2005	1598	74	101	1
1.8 16V (F08, F48)	X 18 XE1	1	02/1998-09/2000	1796	85	116	1
1.8 16V (F08, F48)	Z 18 XE	1	09/2000-05/2005	1796	92	125	1
2.0 (F08)	Z 20 LET	1	08/2002-05/2005	1998	147	199	1
1.4 16V Dualfuel (F08, F48)	X 14 XE Z 14 XE	18	09/1999-06/2003	1389	66	90	1
1.6 Dualfuel (F08, F48)	X 16 SZR	18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel (F08, F48)	Z 16 SE	18	09/2002-05/2005	1598	63	85	1
1.6 Dualfuel (F08, F48)	X 16 XEL Z 16 XE	18	09/1999-08/2004	1598	74	101	1
1.6 Dualfuel (F08)	Z 16 SE	18	07/2000-05/2005	1598	62	86	1
1.8 16V Dualfuel (F08, F48)	Z 18 XE	18	07/2002-12/2003	1796	92	125	1
1.7 CDTI 16V (F08, F48)	Z 17 DTL	2	04/2003-05/2005	1686	59	80	1
1.7 DTI 16V (F08, F48)	Y 17 DT	2	02/2000-05/2005	1686	55	75	1
1.7 TD (F08, F48)	X 17 DTL	2	02/1998-08/2000	1700	50	68	1
2.0 DI (F48)	X 20 DTL Y 20 DTL	2	02/1998-05/2005	1995	60	82	1
2.0 DTI 16V (F48)	Y 20 DTH	2	08/1999-05/2005	1995	74	101	1

ASTRA Mk IV (G) (T98) Saloon 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V		1	09/1998-09/2000	1199	48	65	1
1.2 16V		1	09/2000-05/2005	1199	55	75	1
1.4 16V	X 14 XE Z 14 XE	1	09/1998-05/2005	1389	66	90	1
1.6	X 16 SZR	1	09/1998-09/2000	1598	55	75	1
1.6	Z 16 SE	1	09/2000-05/2005	1598	62	84	1
1.6 16V	X 16 XEL Z 16 XE	1	09/1998-05/2005	1598	74	101	1
1.8 16V	X 18 XE1	1	02/1998-07/2004	1796	85	116	1
1.8 16V	Z 18 XE	1	02/1998-07/2004	1796	92	125	1
1.6 Dualfuel		18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel	Z 16 SE	18	07/2000-05/2005	1598	62	86	1
1.6 Dualfuel	Z 16 SE	18	09/2002-05/2005	1598	63	85	1
1.6 Dualfuel	X 16 XEL Z 16 XE	18	09/1999-08/2004	1598	74	101	1
1.8 16V Dualfuel		18	07/2002-12/2003	1796	92	125	1
1.7 CDTI 16V	Z 17 DTL	2	04/2003-05/2005	1686	59	80	1
1.7 DTI 16V	Y 17 DT	2	02/2000-05/2005	1686	55	75	1
1.7 TD	X 17 DTL	2	09/1998-08/2000	1700	50	68	1
2.0 DI	X 20 DTL Y 20 DTL	2	02/1998-07/2004	1995	60	82	1
2.0 DTI 16V	Y 20 DTH	2	02/1998-07/2004	1995	74	101	1

ASTRA Mk IV (G) (T98) Estate 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V		1	02/1998-09/2000	1199	48	65	1
1.2 16V		1	09/2000-05/2005	1199	55	75	1
1.4 16V	X 14 XE Z 14 XE	1	02/1998-05/2005	1389	66	90	1
1.6	X 16 SZR	1	03/1998-04/2004	1598	55	75	1
1.6	Z 16 SE	1	03/1998-04/2004	1598	62	84	1
1.6	Z 16 XEP	1	12/2002-05/2005	1598	76	103	1
1.6 16V	X 16 XEL Z 16 XE	1	03/1998-04/2004	1598	74	101	1
1.8 16V	X 18 XE1	1	02/1998-08/2000	1796	85	116	1
1.8 16V	Z 18 XE	1	09/2000-05/2005	1796	92	125	1
1.4 16V Dualfuel	X 14 XE Z 14 XE	18	09/1999-06/2003	1389	66	90	1
1.6 Dualfuel	X 16 SZR	18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel	Z 16 SE	18	07/2000-05/2005	1598	62	86	1
1.6 Dualfuel	Z 16 SE	18	03/1998-04/2004	1598	63	85	1
1.8 16V Dualfuel	Z 18 XE	18	07/2002-12/2003	1796	92	125	1
1.7 CDTI 16V	Z 17 DTL	2	04/2003-05/2005	1686	59	80	1
1.7 DTI 16V	Y 17 DT	2	02/2000-05/2005	1686	55	75	1
1.7 TD	X 17 DTL	2	02/1998-08/2000	1700	50	68	1
2.0 DI	X 20 DTL Y 20 DTL	2	03/1998-04/2004	1995	60	82	1
2.0 DTI 16V	Y 20 DTH	2	03/1998-04/2004	1995	74	101	1

ASTRA Mk IV (G) (T98) Coupe 03/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 16V	Z 18 XE	1	09/2000-08/2005	1796	92	125	1
1.8 16V Dualfuel	Z 18 XE	18	07/2002-08/2004	1796	92	125	1

ASTRA Mk IV (G) (T98) Convertible 03/2001-10/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	Z 16 XE	1	03/2001-10/2005	1598	74	101	1
1.6 16V	Z 16 XEP	1	03/2003-10/2005	1598	76	103	1
